Stainless steel tie rod cylinders to ISO 15552 standard - AX Series



Manufacturer	WAIRCOM

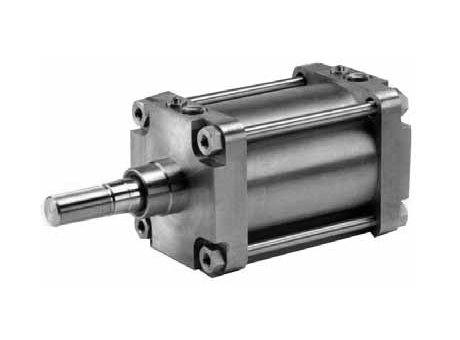

Description	Stainless steel tie rod cylinders to ISO 15552 standard 32/25 AX
Part number	32/25 AX

Modèles CAO

Demander un devis

Sélection de produit

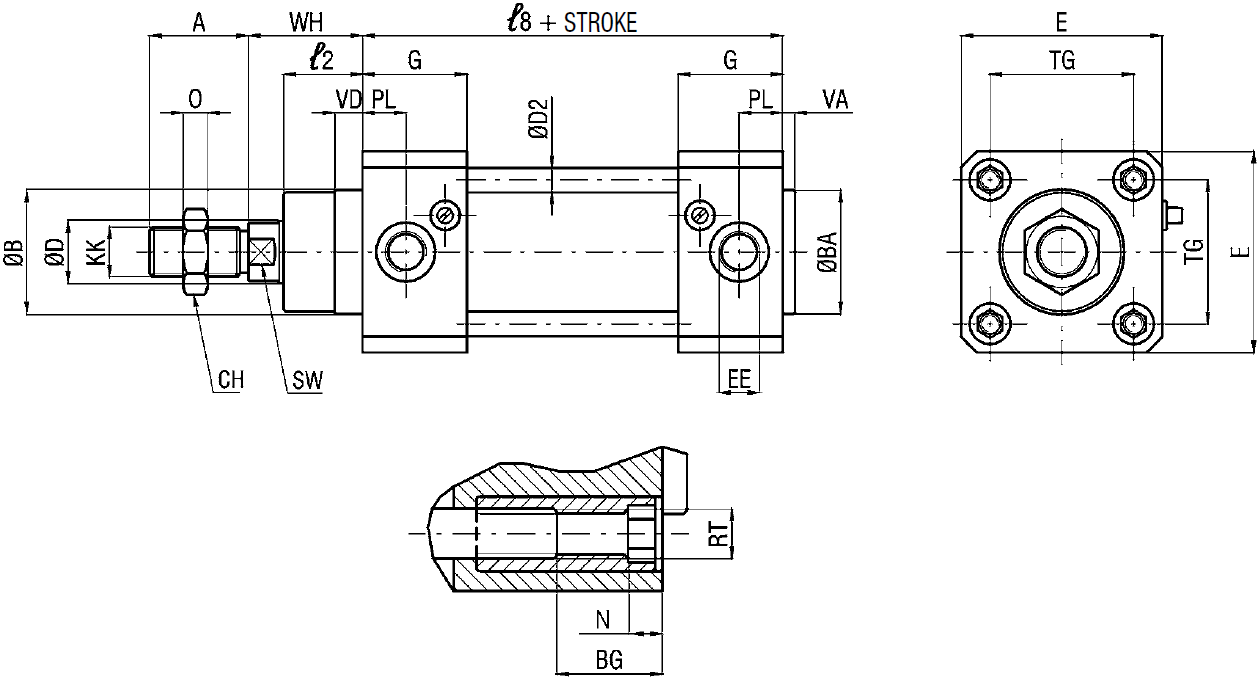

Index	Selector	Ø (mm)	A (mm)	BA / B (mm)	BG (mm)	CH (mm)	D (mm)	D2 (mm)	E (mm)	EE	G (mm)	KK	l2 (mm)	l8 (mm)	N (mm)	O (mm)	PL (mm)	RT	SW (mm)	TG (mm)	VA (mm)	WH (mm)	WEIGHT (g)	INCR. every 10 mm (g)
1	3	32	22	30	16.5	17	12	6	50	G1/8	30	M10x1.25	18	94	5	6	13	M6	10	32.5	4	26	1330	24
2	4	40	24	35	16.5	19	16	6	55	G1/4	33	M12x1.25	22	105	5	7	14	M6	13	38	4	30	1800	32
3	5	50	32	40	17.5	24	20	8	65	G1/4	33.8	M16x1.5	25.5	106	5	8	14	M8	17	46.5	4	37	2760	55
4	6	63	32	45	17.5	30	20	8	75	G3/8	38	M16x1.5	25	121	5	8	16	M8	17	56.6	4	37	7110	59
5	8	80	40	45	17.5	30	25	10	95	G3/8	39.8	M20x1.5	35	128	-	9	17	M10	22	72	4	46	7700	108
6	9	100	40	55	17.5	30	25	10	110	G1/2	43.5	M20x1.5	38	138	-	9	18	M10	22	89	4	51	11320	139
7	10	125	54	60	20.5	41	32	12	140	G1/2	52.5	M27x2	46	160	-	12	18	M12	27	110	6	65	21831	207
8	11	160	72	65	22.5	55	40	16	180	G3/4	45	M36x2	50	179.5	-	14	22.5	M16	36	140	6	80	28023	323
9	12	200	72	75	22.5	55	40	16	220	G3/4	45	M36x2	55	180	-	14	22.5	M16	36	175	6	95	40469	466

Version 1

Standard strokes (Non-standard enter the required value) (mm)

Option 1

Option 2
