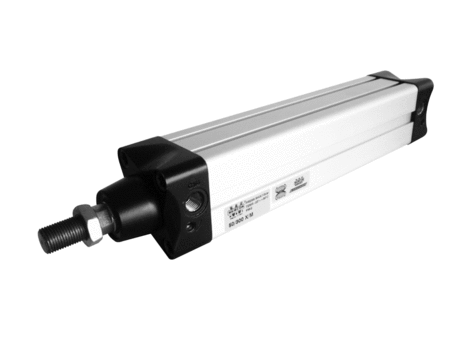

"Clean profile" Cylinders to ISO 15552 standard - X Series

Manufacturer	WAIRCOM
Description	Cylinders to ISO 15552 standard 32/25 X/N/EX
Part number	32/25 X/N/EX

Modèles CAO

Demander un devis

Sélection de produit

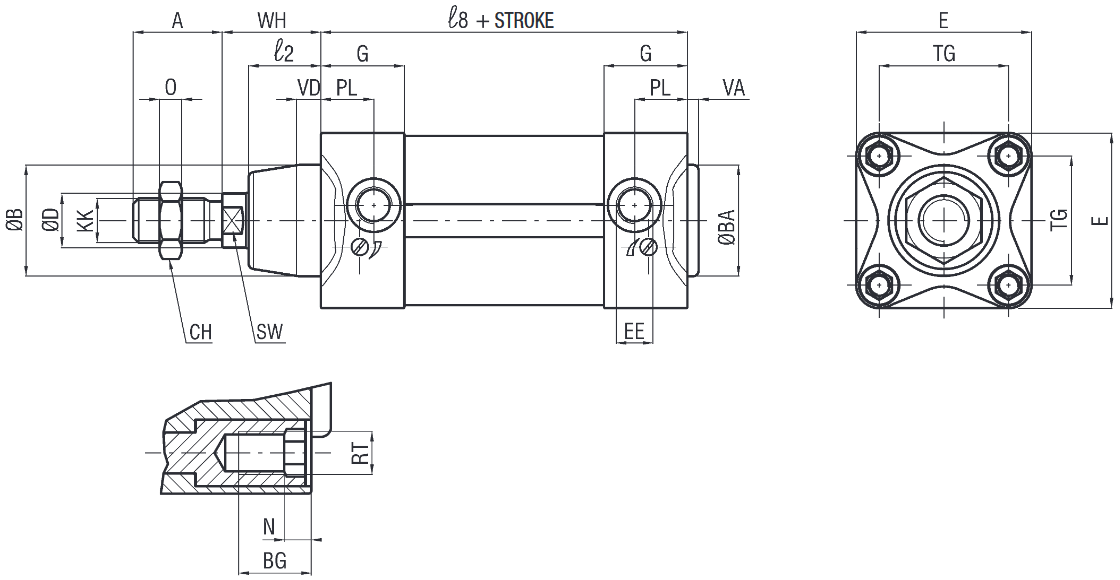

Index	Selector	Ø (mm)	A (mm)	BA B (mm)	BG (mm)	CH (mm)	D (mm)	E (mm)	EE (mm)	G (mm)	KK (mm)	l (mm)	l2 (mm)	l8 (mm)	N (mm)	O (mm)	PL (mm)	R (mm)	RT (mm)	SW (mm)	TG (mm)	VA VD (mm)	WD (mm)	WH (mm)	WEIGHT (g)	INCR. (g)
1	1	32	22	30	16	17	12	47	G1/8	27	M10*1,25	175	20	94	5.5	6	18	9	M6	10	32.5	3	86	26	555	31
2	2	40	24	35	16	19	16	52	G1/4	31	M12*1,25	201	22	105	5.5	7	20.5	9	M6	13	38	3	100	30	809	41
3	3	50	32	40	16	24	20	63	G1/4	30	M16*1,5	191	26	106	5.5	8	19	9	M8	17	46.5	3	127	37	1178	59
4	4	63	32	45	16	24	20	75	G3/8	35.5	M16*1,5	217	27	121	6.5	8	22	9	M8	17	56.5	4	127	37	1683	60
5	5	80	40	45	16	30	25	93	G3/8	36	M20*1,5	240	29	128	6.5	9	23	9	M10	22	72	4	156	46	2683	92
6	6	100	40	55	16	30	25	113	G1/2	39	M20*1,5	258	35	138	6.5	9	24	9	M10	22	89	4	161	51	3645	96

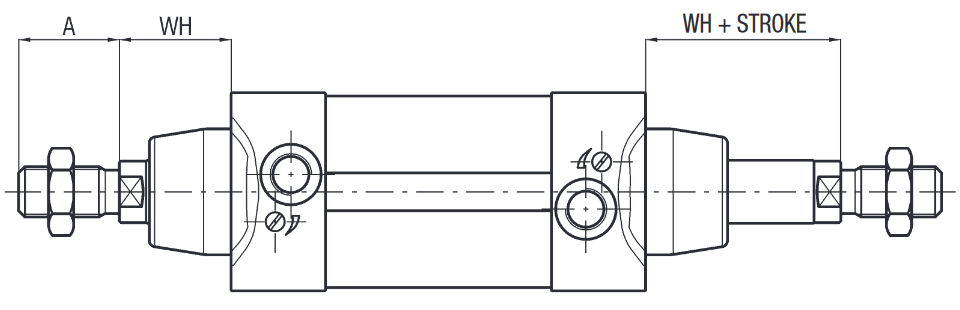

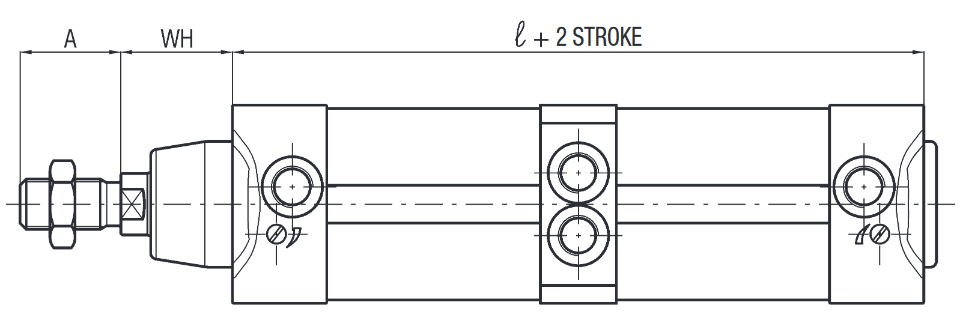

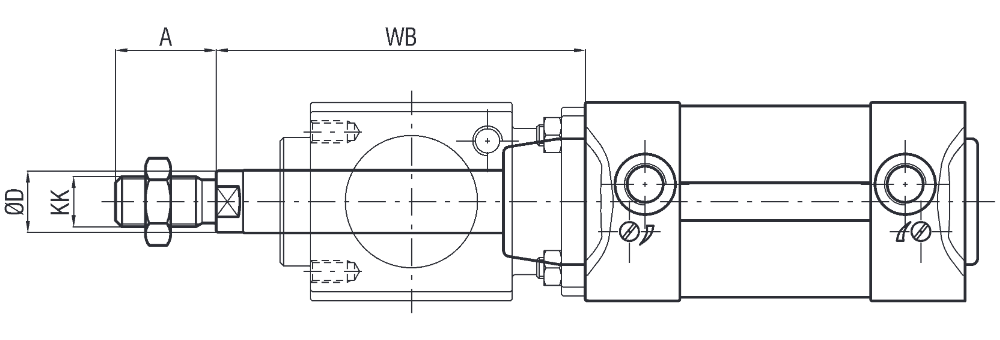

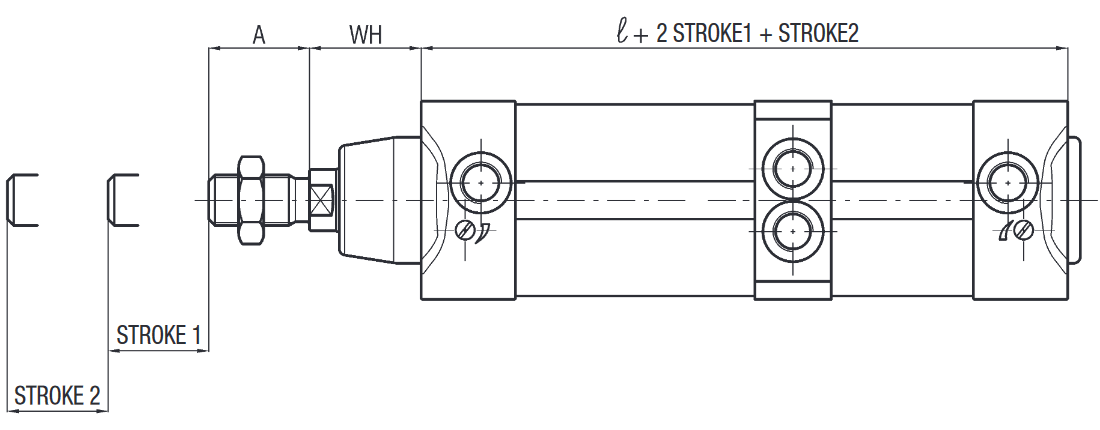

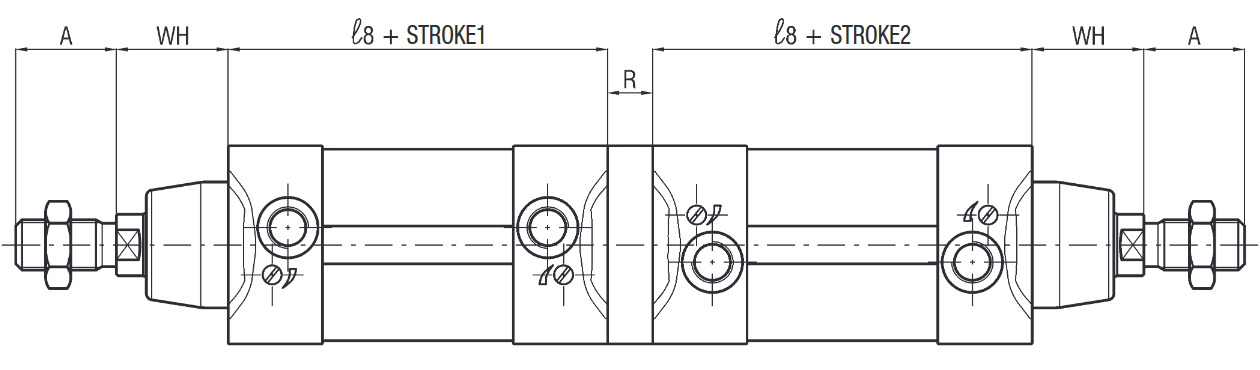

Version

Standard stroke (mm)

For non-standard strokes enter the required value

Standard stroke 2 (mm)

For non-standard strokes enter the required value

Piston type

Option 1

Option 2

Option 3

Option 4

Option 5
