Compact cylinders - B Series



Manufacturer	WAIRCOM
Description	Compact cylinders 100/15 DB/M
Part number	100/15 DB/M

Modèles CAO

Demander un devis

Sélection de produit

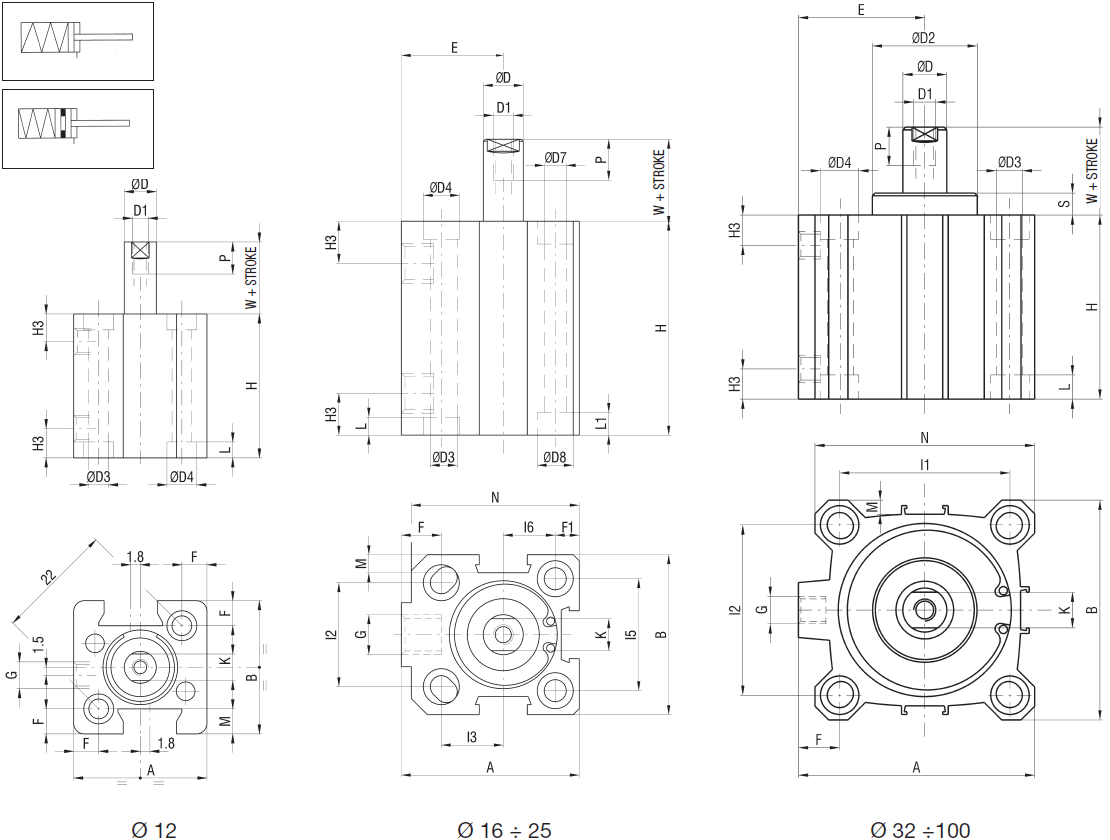

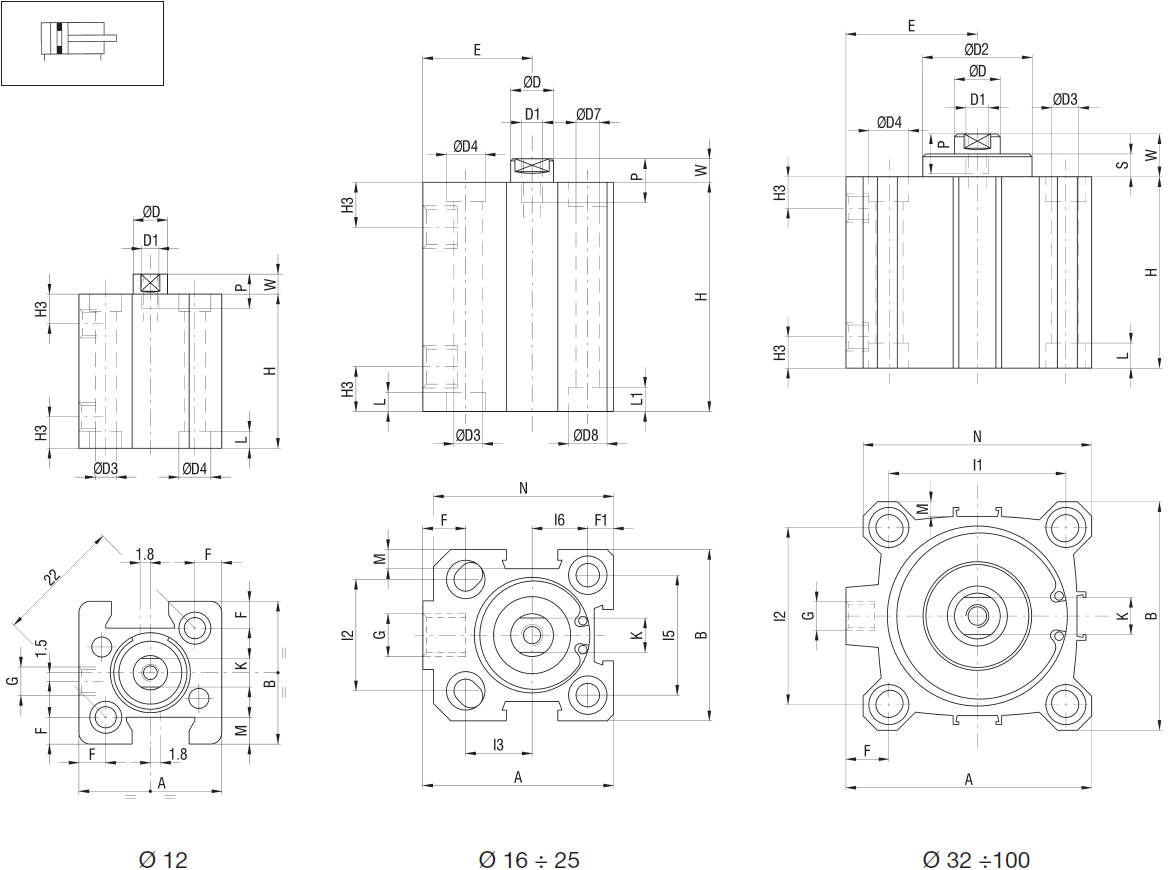

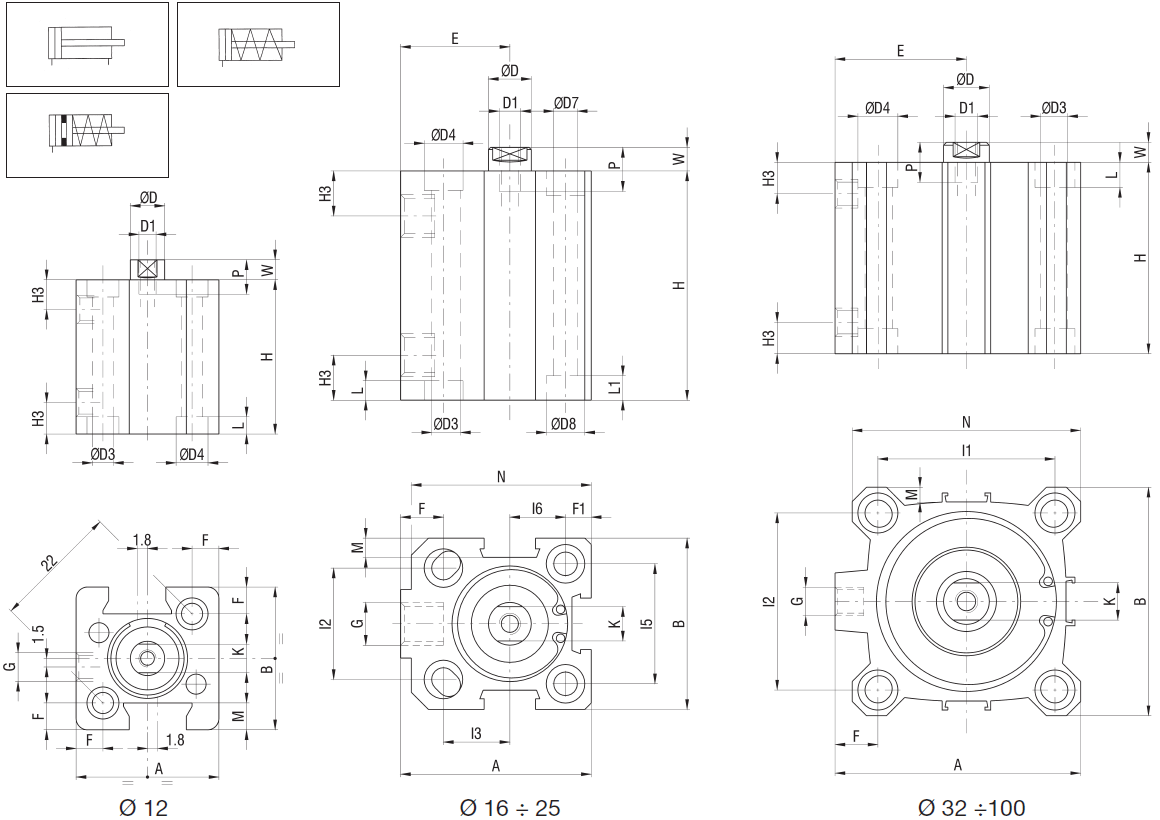

Index	Selector	Ø (mm)	A (mm)	B (mm)	D (mm)	D1	D3 (mm)	D4 (mm)	D7 (mm)	D8 (mm)	E (mm)	F (mm)	F1 (mm)	G	H3 (mm)	I1 (mm)	I2 (mm)	I3 (mm)	I5 (mm)	I6 (mm)	K (mm)	L (mm)	L1 (mm)	M (mm)	N (mm)	P (mm)	W (mm)	WEIGHT (g)	INCR. x 10 mm (g)
1	1	12	25	25	6	M3	3.7	5.6	-	-	-	4.7	-	M5	5.5	-	-	-	-	-	5	3.5	-	4.7	-	6	3.5	33.5	11.5
2	2	16	34	30	8	M4	4.7	7.5	3.7	5.6	19	7	5	M5	8	-	18	12	20	10	6	4.6	3.5	4	32	8	4.5	74	16.5
3	3	20	40	36	10	M5	5.8	9	5.8	9	22	7	5.2	M5	8	-	20	15	25.5	12.7	8	5.7	5.7	5.7	38,5	10	5	106	24.5
4	4	25	44.5	40	10	M5	5.8	9	5.8	9	24.5	9	6	G1/8	10.5	-	26	15.5	28	14	8	5.7	5.7	4.5	42	10	5.5	145	32
5	5	32	51	46	12	M6	5.8	9	-	-	27	9	-	G1/8	11.5	36	32	-	-	-	10	5.7	-	4	48	12	6	172	36
6	6	40	58	55	12	M6	5.8	9	-	-	30.5	9.5	-	G1/8	11	42	42	-	-	-	10	5.7	-	4	55	12	6	225	40
7	7	50	70	65	16	M8	6.8	11	-	-	37.5	12.5	-	G1/8	11.5	50	50	-	-	-	13	6.8	-	4	65	12	7.5	359	63
8	8	63	86	80	16	M8	9	14	-	-	46	15	-	G1/8	11	62	62	-	-	-	13	8.8	-	5	80	14	7	552	70
9	9	80	105	100	20	M10	9	14	-	-	55	14	-	G1/4	14	82	82	-	-	-	17	9	-	6	100	15	8	1072	105
10	10	100	131	124	25	M12	11	17.2	-	-	69	17.5	-	G1/4	16	103	103	-	-	-	22	11	-	7.5	124	20	10	1920	160

Version 1

Version 2

Version 3

Piston type

Standard stroke (mm)

Option 2

-
