DUO RKE

Modèles CAO

Demander un devis

Sélection de produit

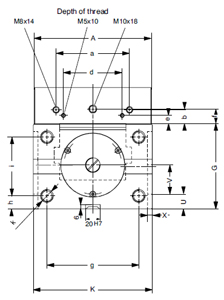

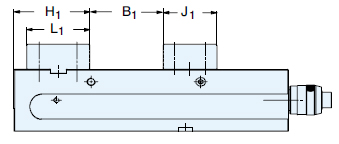

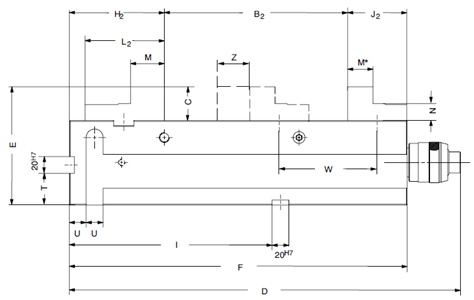

Index	Selector	Id.-No. with standard clamping jaws	B1 Clamping capacity	H1 (mm)	J1 (mm)	L1 (mm)	C Jaw height (mm)	D max. Total length (mm)	E (mm)	F (mm)	G -0.02 (mm)	H2 (mm)	J2 (mm)	K (mm)	L2 (mm)	M/M* (mm)	N (mm)	T -0.02 (mm)	U (mm)	V (mm)	W Shifting range	X (mm)	Z Clamping slide travel (mm)	a (mm)	b (mm)	d (mm)	e (mm)	f (mm)	g (mm)	h (mm)	i (mm)	k x depth	l - 0.02 (mm)	Clamping force (kN)	Weight (kg)
1	1	162646	0- 215	110.5	78	92	40	463	140	400	100	112.5	70	126	94	40/30	20	37.5	20	40	1x108	6.5	109	80	15.6	60	12	18	95	25	45	M12 x 22	240	40	41
2	2	162647	0 - 320	130	100	100	50	618	165	530	115	130	97	162	98	34/32.5	25	47.5	40	40	2x102,5	6.5	117	100	19.6	80	12	20	125	17.5	80	M16 x 25	200	60	79
