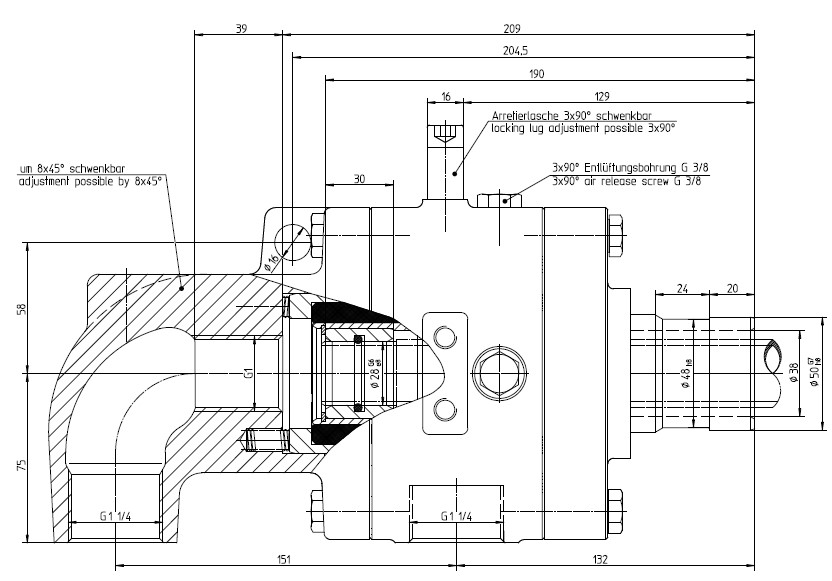

HWA 240 K

Robust, dual-channel DN40 sealing head with large bearing spacing and up to 50% higher speed than the standard H.


Manufacturer maierGroup
Description HWA 240 K
Manufacturer Part Number 1108490
Product Page https://maier-heidenheim.com/ddf/baureihe-h/
Material Guss
Mass 16,5 kg
Quantity 1
Media Wasser, Dampf
max flow rate bis 7,9 m³/h
max speed 150000/(DN x PN)
max temperature -10…230 °C
max pressure -0,2…28 bar
Inner diameter of rotor 38 mm
Housing connection B G 1 1/4
Housing connection C G 1 1/4
Rotor connection K-flange 50 mm
Diameter of inner tube support 28 mm
Overall length 313 mm
Modèles CAO
Demander un devis
Assurez-vous que ce logiciel a été installé.

Sélection de produit

Description du produit

Flexible, robust, and low-maintenance: The reinforced version of the H series is designed for a wide range of media and a large pressure and temperature range up to higher speeds. This means you only need one solution for a wide variety of applications. As a result, you can reduce your maintenance and storage costs in the long term.
