By ZheJiang XingChen pneumatic Co., LTD

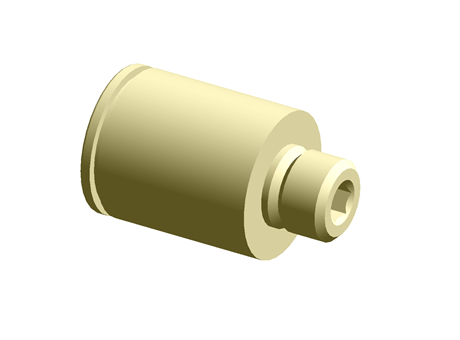

Inner Hex Connector KQGS Series

Manufacturer	ZheJiang XingChen pneumatic Co., LTD
Description	Inner Hex Connector KQGS Series KQGS04-M5
Part number	KQGS04-M5

CAD models

Request for quotation

Product selection

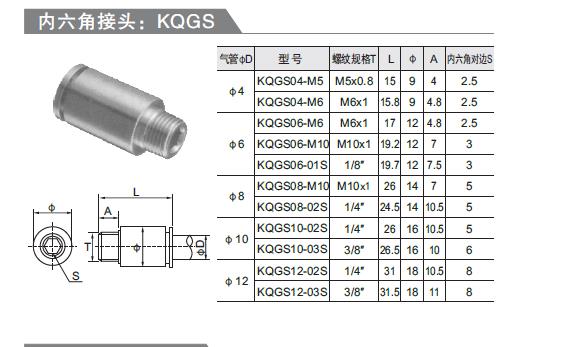

Index	Selector	Air Pipe Φ	Model	Thread T	L	Φ	A	S
1	1	Φ4	KQGS04-M5	M5×0.8	15	9	4	2.5
2	2	Φ4	KQGS04-M6	M6×1	15.8	9	4.8	2.5
3	3	Φ6	KQGS06-M6	M6×1	17	12	4.8	2.5
4	4	Φ6	KQGS06-M10	M10×1	19.2	12	7	3
5	5	Φ6	KQGS06-01S	1/8	19.7	12	7.5	3
6	6	Φ8	KQGS08-M10	M10×1	26	14	7	5
7	7	Φ8	KQGS08-02S	1/4	24.5	14	10.5	5
8	8	Φ10	KQGS10-02S	1/4	26	16	10.5	5
9	9	Φ10	KQGS10-03S	3/8	26.5	16	10	6
10	10	Φ12	KQGS12-02S	1/4	31	18	10.5	8
11	11	Φ12	KQGS12-03S	3/8	31.5	18	11	8
