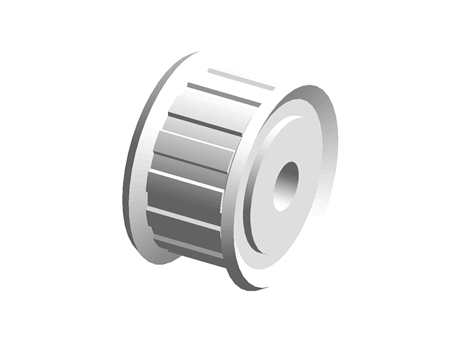

Synchronous Pulley - Width Appointed Type EUH21_S5M

Manufacturer	YIHEDA
Description	Synchronous Pulley - Width Appointed Type EUH21-S5M14-A-W15-H6
Part number	EUH21-S5M14-A-W15-H6

CAD models

Product selection

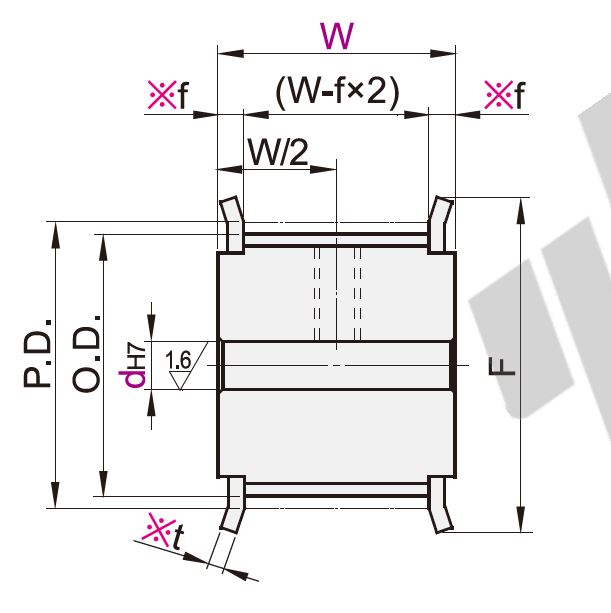

Index	Selector	Tooth Number	W	d	P.D.	O.D.	F
1	1	14	20～100	6～10	22.28	21.32	26
2	2	16	20～100	7～12	25.46	24.5	32
3	3	20	20～100	7～16	31.83	30.87	36
4	4	24	20～100	7～20	38.2	37.24	45
5	5	25	20～100	7～20	39.79	38.83	45
6	6	30	20～100	10～26	47.75	46.79	52
7	7	32	20～100	10～28	50.93	49.97	55
8	8	36	20～100	10～30	57.3	56.34	61
9	9	40	20～100	10～38	63.66	62.7	67

Axis Hole

Change Stop Screw Angle

Not Available

Machining Flange

Machining Threaded Hole

Not Available
