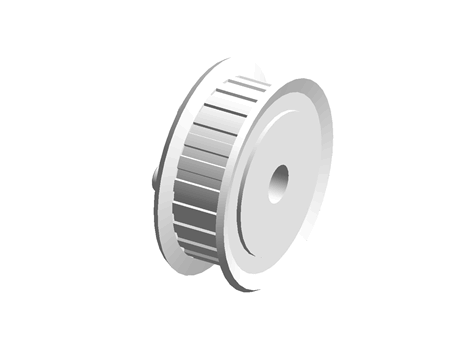

Keyless Synchronous Pulley T5 Type - E Shape - ECG_T5100/T5150/T5200/T5250

Manufacturer	YIHEDA
Description	Keyless Synchronous Pulley T5 Type - E Shape - ECG0124T5100-E-8
Part number	ECG0124T5100-E-8

CAD models

Product selection

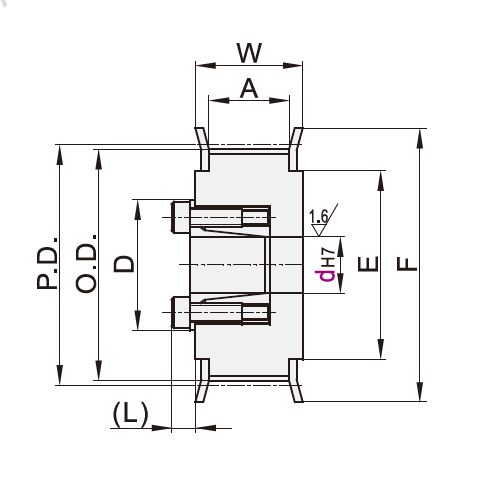

Index	Selector	Tooth Number	P.D.	O.D.	F	E
1	1	24	38.2	37.4	45	30
2	11	25	39.79	39	45	30
3	2	26	41.38	40.6	48	35
4	3	28	44.56	43.75	48	35
5	4	30	47.75	46.95	52	36
6	5	32	50.93	50.1	55	40
7	6	34	54.11	53.25	61	45
8	7	36	57.3	56.45	61	45
9	8	40	63.66	62.85	67	50
10	12	44	70.03	69.2	74	58
11	13	48	76.39	75.55	83	63
12	9	50	79.58	78.75	87	67
13	10	60	95.49	94.65	99	80

Belt Width

Machining Flange

Material and Treatment

ECG01:Pulley:A6061;Flange:A6061;Natural Color Anodizing

FA Automatic Manufacturer
