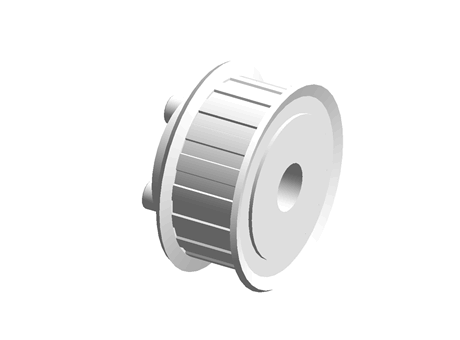

Keyless High Torque Synchronous Pulley S8M Type - E Shape - ECF_S8M150/S8M250/S8M300/S8M400

Manufacturer	YIHEDA
Description	Keyless High Torque Synchronous Pulley S8M Type - E Shape - ECF0118S8M150-E-12
Part number	ECF0118S8M150-E-12

CAD models

Product selection

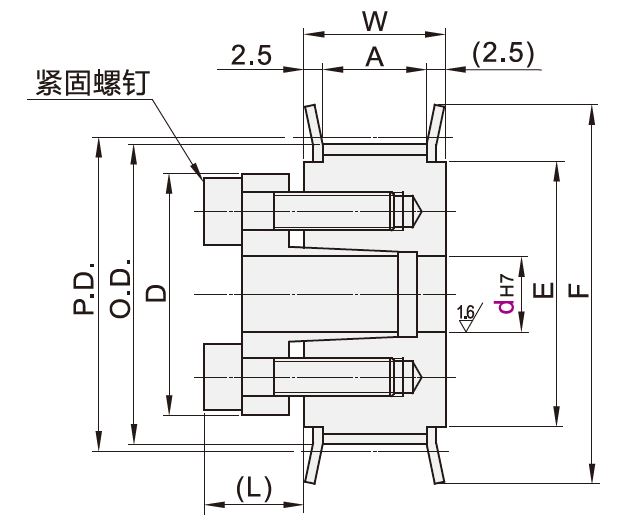

Index	Selector	Tooth Number	P.D.	O.D.	F	E
1	1	18	45.84	44.46	52	36
2	2	19	48.38	47.01	55	40
3	3	20	50.93	49.56	58	40
4	4	21	53.48	52.1	61	45
5	5	22	56.02	54.65	61	45
6	6	24	61.12	59.74	67	50
7	7	25	63.66	62.29	70	56
8	8	26	66.21	64.84	74	58
9	9	28	71.3	69.93	80	60
10	10	30	76.39	75.02	87	67
11	11	32	81.49	80.12	87	67
12	12	34	86.58	85.21	95	75
13	13	36	91.67	90.3	99	80
14	14	38	96.77	95.39	104	84
15	15	40	101.86	100.49	111	90
16	16	44	112.05	110.67	119	100
17	17	48	122.23	120.86	127	105
18	18	50	127.32	125.95	135	115
19	19	60	152.79	151.42	160	140
20	20	72	183.35	181.97	190	170

Belt Width

Machining Flange

Material and Treatment
