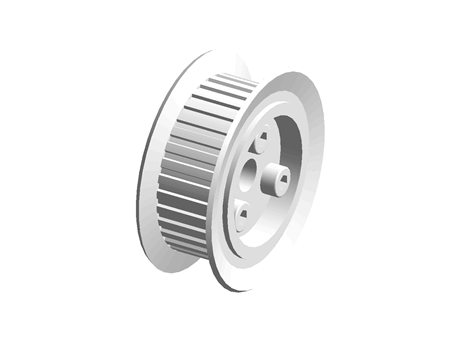

Keyless High Torque Synchronous Pulley S3M Type - F Shape - EBY_S3M100/S3M150

Manufacturer	YIHEDA
Description	Keyless High Torque Synchronous Pulley S3M Type - F Shape - EBY0134S3M100-F-6
Part number	EBY0134S3M100-F-6

CAD models

Request for quotation

Product selection

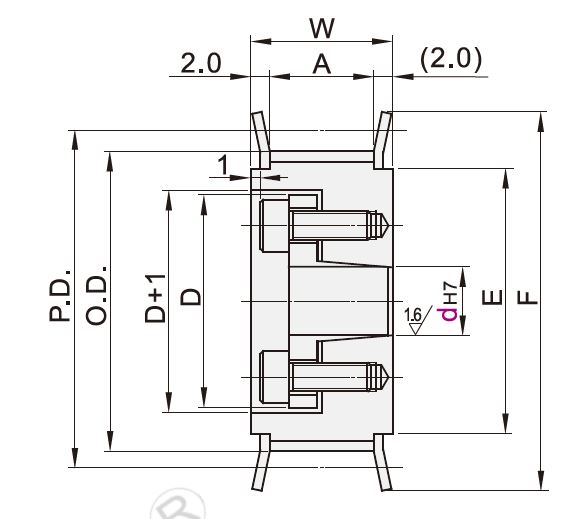

Index	Selector	Tooth Number	P.D.	O.D.	F	E
1	1	34	32.47	31.71	40	28
2	2	36	34.38	33.62	40	28
3	3	40	38.2	37.44	44	32
4	4	44	42.02	41.25	48	36
5	5	48	45.84	45.07	50	38
6	6	50	47.75	46.98	52	40
7	7	60	57.3	56.53	61	46
8	8	72	68.76	67.84	74	58

Belt Width

Machining Flange

d

6

FC

Material and Treatment

Documentation

Technical Documents
