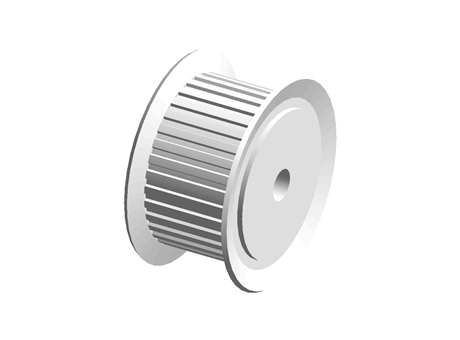

Keyless High Torque Synchronous Pulley S3M Type - F Shape - EBY46_S3M150

Manufacturer	YIHEDA
Description	Keyless High Torque Synchronous Pulley S3M Type - F Shape - EBY4634S3M150-F-6
Part number	EBY4634S3M150-F-6

CAD models

Product selection

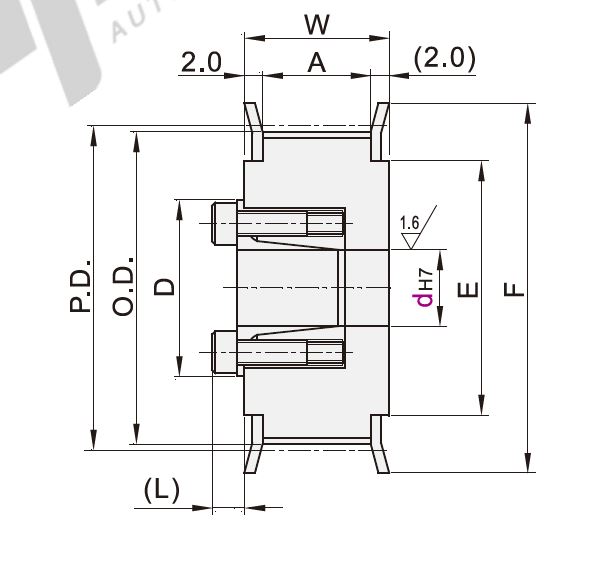

Index	Selector	Tooth Number	P.D.	O.D.	F	E
1	1	34	32.47	31.71	40	28
2	2	38	34.38	33.62	40	28
3	3	40	38.2	37.44	44	32
4	4	44	42.02	41.25	48	36
5	5	48	45.84	45.07	50	38
6	6	50	47.75	46.98	52	40
7	7	60	57.3	56.53	61	46
8	8	72	68.75	67.99	74	58

Material and Treatment

EBY46:Pulley:A7075;Flange:Aluminium Alloy;Natural Color Anodizing

Machining Flange
