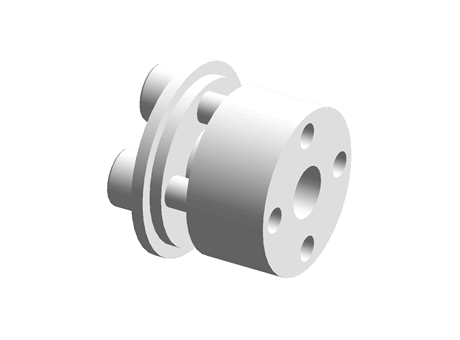

Keyless Bushing - Standard Type - EUX16/EUX17/EUX18/EUX19

Manufacturer	YIHEDA
Description	Keyless Bushing - Standard Type - EUX165
Part number	EUX165

CAD models

Product selection

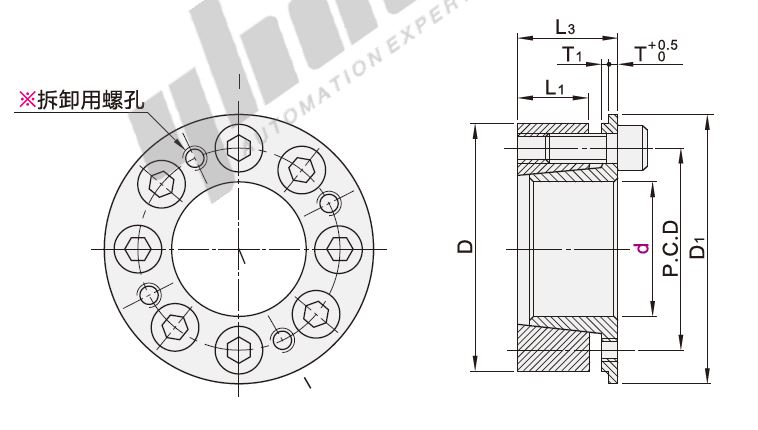

Index	Selector	d	D	D1	P.C.D	L1	L3	T	T1	MxL	Number
1	1	5	16	18.5	11.7	8	13	1.8	1.2	M3XL10	4
2	2	6	19	21.5	14	9	14.3	2	1.3	M4XL12	4
3	3	8	21	23.5	15.4	9.3	14.6	2	1.3	M4XL12	4
4	4	10	23	25.5	17.5	9.5	14.8	2	1.3	M4XL12	4
5	5	11	24	26.5	18.4	9.5	15.8	2	1.3	M4XL12	4
6	6	12	26	28.5	20.2	10.5	18	2.5	1.5	M4XL15	6
7	7	14	28	30.5	22.2	10.5	18	2.5	1.5	M4XL15	6
8	8	15	29	31.5	23.2	11.5	19	2.5	1.5	M4XL15	6
9	9	16	30	33	24.2	12	19.6	2.5	1.6	M4XL15	6
10	10	17	31	33.5	25.2	12.5	20.1	2.5	1.6	M4XL15	8
11	11	18	32	34.5	26.2	12.5	20.1	2.5	1.6	M4XL15	8
12	12	19	33	35.5	27.2	12.5	20.1	2.5	1.6	M4XL15	8
13	13	20	38	42	30.8	15.3	24.1	3	1.8	M5XL18	8
14	14	22	40	44	32.8	15.3	24.1	3	1.8	M5XL18	8
15	15	24	42	46	34.8	16.3	25.1	3	1.8	M5XL18	8
16	16	25	43	47	35.8	17.3	26.1	3	1.8	M5XL18	8
17	17	28	46	50	38.8	17.3	26.6	3.5	1.8	M5XL18	10
18	18	30	48	52	40.8	17.3	26.6	3.5	1.8	M5XL18	10
19	19	32	50	54	42.8	18.3	27.6	3.5	1.8	M5XL18	10
20	20	35	57	62	48.4	19.5	30	4	2	M6XL20	8
21	21	38	60	65	51.4	20	30.5	4	2	M6XL20	10
22	22	40	62	67	53.4	20.5	31	4	2	M6XL20	10
23	23	42	64	69	55.4	20.5	31	4	2	M6XL20	10
24	24	45	67	72	58.4	21	31.5	4	2	M6XL20	10
25	25	48	70	75	61.4	21	32	4.5	2	M6XL20	12
26	26	50	72	77	63.4	21.5	32.5	4.5	2	M6XL20	14
27	27	55	77	83	68.4	21.5	32.5	4.5	2	M6XL20	14
28	28	60	82	87	73.4	22	33.5	5	2	M6XL20	15
29	29	65	87	92	78.4	22	33.5	5	2	M6XL20	15

Material and Treatment
