Keyless Bushing - Simple Type - EUX21/EUX22

Manufacturer	YIHEDA
Description	Keyless Bushing - Standard Type - EUX2119
Part number	EUX2119

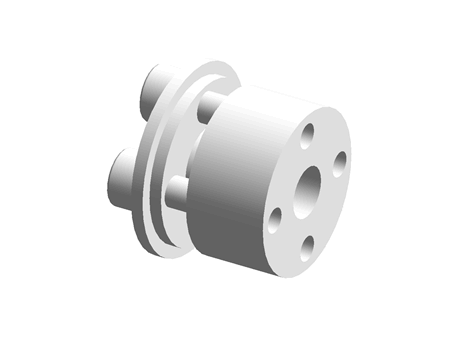

CAD models

Product selection

Index	Selector	d	D	D1	L1	L2	L3	L	MxL	Number
1	1	19	47	56	17	22	28	34	M6X20	5
2	2	20	47	56	17	22	28	34	M6X20	5
3	3	22	47	56	17	22	28	34	M6X20	5
4	4	24	50	59	17	22	28	34	M6X20	5
5	5	25	50	59	17	22	28	34	M6X20	6
6	6	28	55	64	17	22	28	34	M6X20	6
7	7	30	55	64	17	22	28	34	M6X20	6
8	8	32	60	69	17	22	28	34	M6X20	8
9	9	35	60	69	17	22	28	34	M6X20	8
10	10	38	65	74	17	22	28	34	M6X20	8
11	11	40	65	74	17	22	28	34	M6X20	8
12	12	42	75	84	20	25	33	41	M8X25	7
13	13	45	75	84	20	25	33	41	M8X25	7
14	15	50	80	89	20	25	33	41	M8X25	7
15	16	55	85	94	20	25	33	41	M8X25	8
16	17	60	90	99	20	25	33	41	M8X25	8
17	18	65	95	104	20	25	33	41	M8X25	9
18	19	70	110	119	24	30	40	50	M10X30	8
19	20	75	115	124	24	30	40	50	M10X30	8
20	21	80	120	129	24	30	40	50	M10X30	8

Material and Treatment
