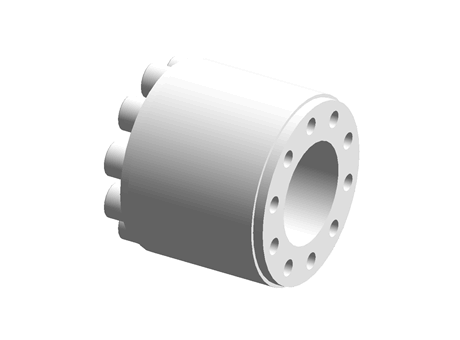

Keyless Bushing - High Torque Straight Column Type EUX61/EUX62

Manufacturer	YIHEDA
Description	Keyless Bushing - High Torque Straight Column Type EUX61-d25
Part number	EUX61-d25

CAD models

Request for quotation

Product selection

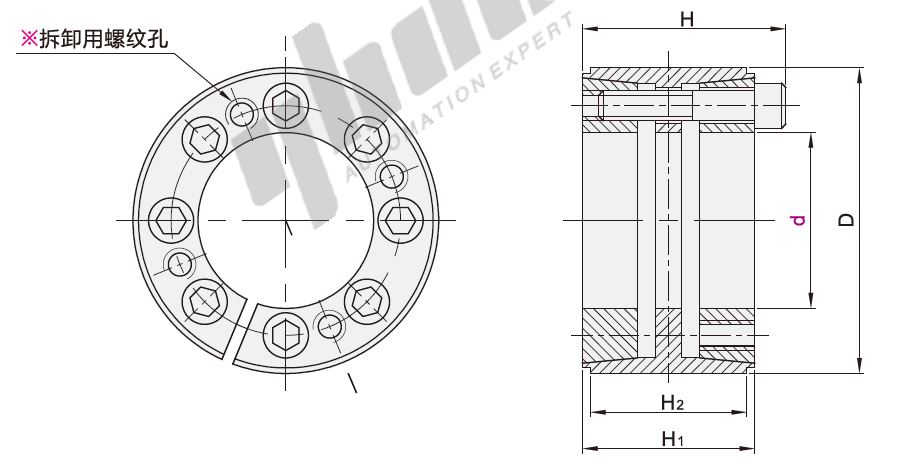

Index	Selector	d	D	MxL	Number	H	H1	H2
1	1	25	50	M6x35	6	46	40	32
2	2	28	55	M6x35	6	46	40	32
3	3	30	55	M6x35	6	46	40	32
4	4	35	60	M6x35	7	60	54	44
5	5	38	65	M6x50	10	62	54	44
6	6	40	65	M6x50	10	62	54	44
7	7	42	75	M8x50	7	62	54	44
8	8	45	75	M8x50	7	62	54	44
9	9	48	80	M8x55	8	72	64	56
10	10	50	80	M8x55	8	72	64	56
11	11	55	85	M8x55	9	72	64	56
12	12	60	90	M8x55	10	72	64	56
13	13	65	95	M8x55	10	72	64	56

Material and Treatment

Documentation

Technical Documents
