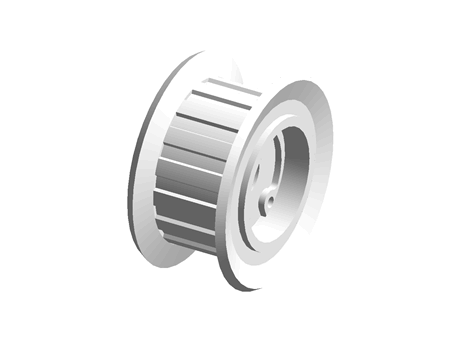

Gear Idler Wheel with Flange - S5M - EVD01/EVD41/EVD42

Manufacturer	YIHEDA
Description	Gear Idler Wheel with Flange - S5M - EVD0116S5M100
Part number	EVD0116S5M100

CAD models

Request for quotation

Product selection

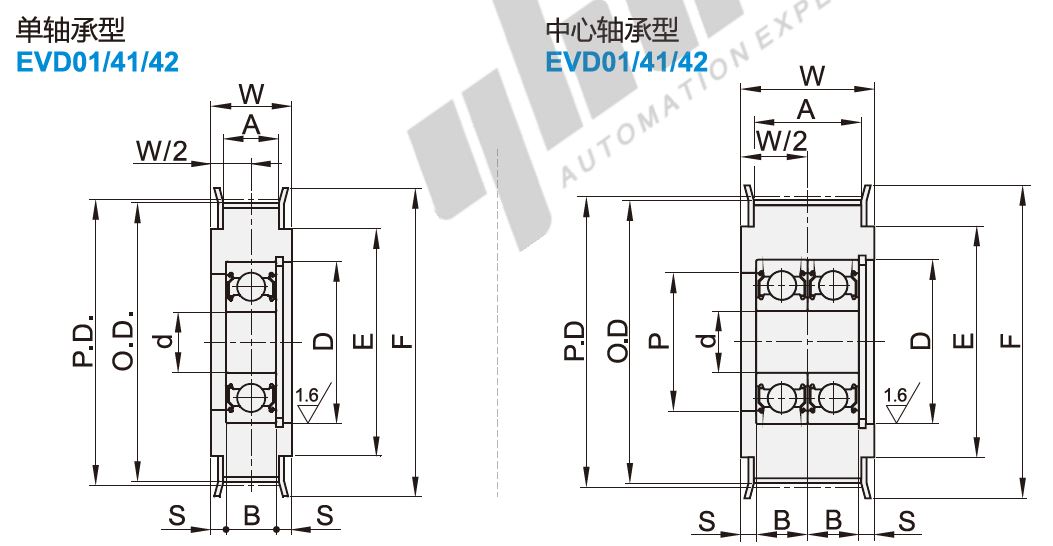

Index	Selector	Tooth Number	Corresponding Belt	d	P.D.	O.D.	F	E	A	W	S	No.	D	B
1	1	16	S5M100	6	25.46	24.5	32	20	11	16	5	698ZZx1	17	6
2	2	18	S5M100	8	28.65	27.69	33	22	11	16	5	698ZZx1	19	6
3	3	20	S5M100	8	31.83	30.87	36	24	11	16	5	698ZZx1	19	6
4	4	20	S5M150	8	31.83	30.87	36	24	17	22	5	628ZZx2	19	6
5	5	22	S5M100	8	35.01	34.05	40	27	11	16	4	628ZZx1	24	8
6	6	22	S5M150	8	35.01	34.05	40	27	17	22	3	6000ZZx2	24	8
7	7	24	S5M100	10	38.2	37.24	45	30	11	16	4	6000ZZx1	26	8
8	8	24	S5M150	10	38.2	37.24	45	30	17	22	3	6000ZZx2	26	8
9	9	25	S5M100	10	39.79	38.83	45	30	11	16	4	6000ZZx1	26	8
10	17	25	S5M150	10	39.79	38.83	45	30	17	22	3	6200ZZx2	26	8
11	18	26	S5M100	10	41.38	40.42	48	35	11	16	3.5	6200ZZx1	30	9
12	19	28	S5M100	10	44.56	43.6	48	35	11	16	3.5	6200ZZx1	30	9
13	10	28	S5M150	10	44.56	43.6	48	35	17	22	6.5	6201ZZx1	30	9
14	11	30	S5M100	12	47.75	46.79	52	36	11	16	3	6201ZZx1	32	10
15	12	30	S5M150	12	47.75	46.79	52	36	17	22	6	6201ZZx1	32	10
16	13	32	S5M100	12	50.93	49.97	55	40	11	16	3	6000ZZx1	32	10
17	14	32	S5M150	10	50.93	49.97	55	40	17	22	3	6201ZZx2	26	8
18	15	36	S5M100	12	57.3	56.34	61	45	11	16	3	6201ZZx1	32	10
19	16	40	S5M100	12	63.66	62.7	67	50	11	16	3	6201ZZx1	32	10

Material and Treatment

Machining Flange

FC

Documentation

Technical Documents
