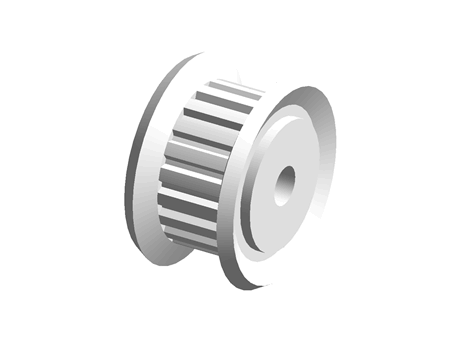

Gear Idler Wheel with Flange - S2M - EVD21

Manufacturer	YIHEDA
Description	Gear Idler Wheel with Flange - S2M - EVD2120-S2M100-4
Part number	EVD2120-S2M100-4

CAD models

Request for quotation

Product selection

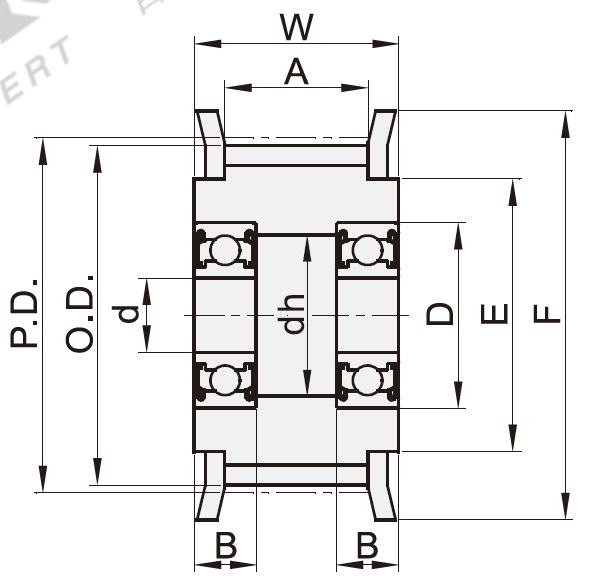

Index	Selector	Tooth Number	Corresponding Belt	d	P.D.	O.D.	F	E	A	W	Dh	No.	D	B
1	3	20	S2M100	4	12.73	12.22	16	10	11	15	6	674ZZx2	7	2.5
2	6	30	S2M100	4	19.01	18.59	22	14	11	15	6	674ZZx2	7	2.5
3	9	32	S2M100	4	20.37	19.86	25	16	11	15	9.5	694ZZx2	11	4
4	12	36	S2M100	5	22.92	22.41	28	18	11	15	11	695ZZx2	13	4
5	17	40	S2M100	6	25.46	24.96	30	20	11	15	13	696ZZx2	15	5
6	18	48	S2M100	8	30.56	30.05	35	25	11	15	17	698ZZx2	19	6
7	15	50	S2M100	8	31.83	31.32	35	25	11	15	17	698ZZx2	19	6
8	16	60	S2M100	8	38.2	37.69	44	32	11	15	17	698ZZx2	19	6
