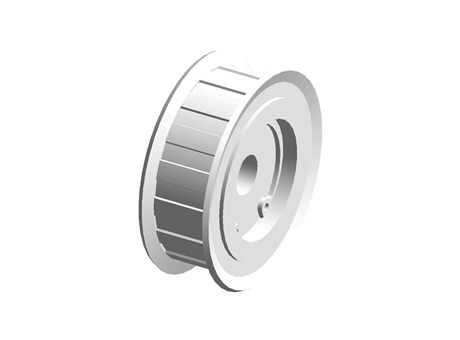

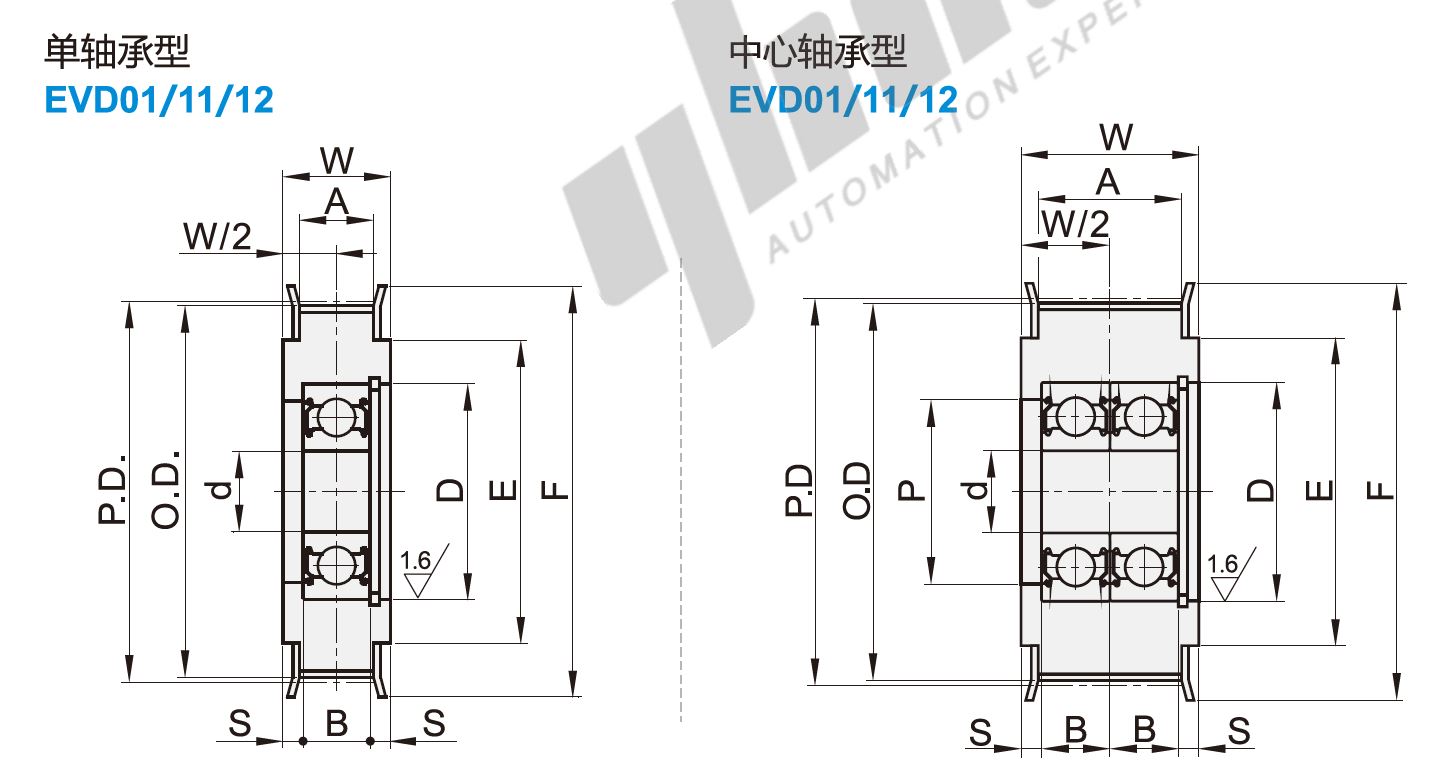

Gear Idler Wheel with Flange - L - EVD01/EVD11/EVD12

Manufacturer	YIHEDA
Description	Gear Idler Wheel with Flange - L - EVD0116L050
Part number	EVD0116L050

CAD models

Request for quotation

Product selection

Index	Selector	Tooth Number	Corresponding Belt	d	P.D.	O.D.	F	E	A	W	S	No.	D	B
1	1	16	L050	10	48.51	47.75	55	40	14	19	5	BAY6200ZZx1	30	9
2	2	16	L075	10	48.51	47.75	55	40	21	26	8.5	BAY6200ZZx1	30	9
3	3	18	L050	12	54.57	53.81	61	45	14	19	4.5	BAY6201ZZx1	32	10
4	4	18	L075	12	54.57	53.81	61	45	21	26	8	BAY6201ZZx1	32	10
5	5	18	L100	12	54.57	53.81	61	45	27	32	6	BAY6201ZZx2	32	10
6	6	20	L050	12	60.64	59.88	67	50	14	19	4.5	BAY6201ZZx1	32	10
7	7	20	L075	12	60.64	59.88	67	50	21	26	8	BAY6201ZZx1	32	10
8	8	20	L100	12	60.64	59.88	67	50	27	32	6	BAY6201ZZx2	32	10
9	9	22	L050	15	66.7	65.94	80	60	14	19	4	BAY6202ZZx1	35	11
10	10	22	L075	15	66.7	65.94	80	60	21	26	7.5	BAY6201ZZx1	35	11
11	11	30	L050	15	90.96	90.2	99	80	14	19	4	BAY6202ZZx1	35	11
12	12	30	L075	15	90.96	90.21	99	80	21	26	7.5	BAY6201ZZx1	35	11

Material and Treatment

Machining Flange

FC
