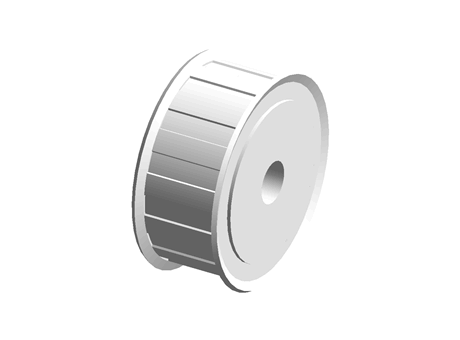

Gear Idler Wheel with Flange - H - EVD21/EVD36/EVD37

Manufacturer	YIHEDA
Description	Gear Idler Wheel with Flange - H - EVD2114-H075-12
Part number	EVD2114-H075-12

CAD models

Request for quotation

Product selection

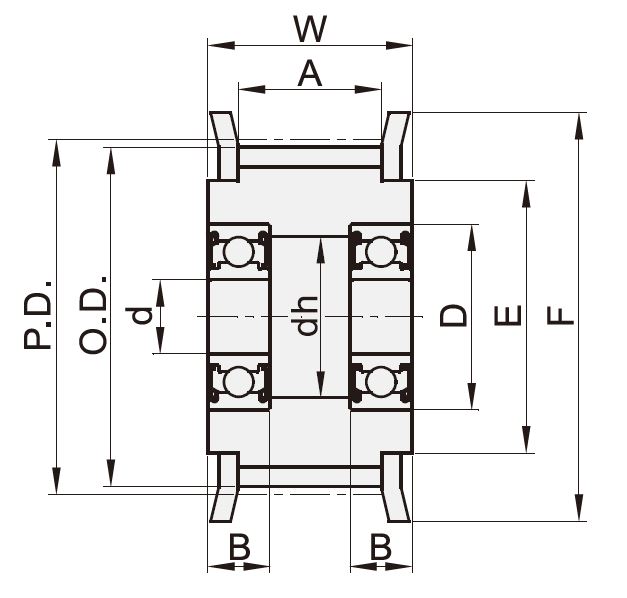

Index	Selector	Tooth Number	Corresponding Belt	d	P.D.	O.D.	F	E	A	W	Dh	No.	D	B
1	1	14	H075	12	56.6	55.22	61	45	21	26	27	BAY6201ZZx2	32	10
2	2	14	H100	12	56.6	55.22	61	45	27	32	27	BAY6201ZZx2	32	10
3	3	14	H150	15	56.6	55.22	61	45	40	45	30	BAY6202ZZx2	35	11
4	4	14	H200	15	56.6	55.22	61	45	54	59	30	BAY6202ZZx2	35	11
5	5	15	H075	12	60.64	59.27	67	50	21	26	27	BAY6201ZZx2	32	10
6	6	15	H100	12	60.64	59.27	67	50	27	32	27	BAY6201ZZx2	32	10
7	7	15	H150	15	60.64	59.27	67	50	40	45	30	BAY6202ZZx2	35	11
8	8	15	H200	15	60.64	59.27	67	50	54	59	30	BAY6202ZZx2	35	11
9	9	16A	H075	12	64.68	63.31	70	56	21	26	27	BAY6201ZZx2	32	10
10	10	16A	H100	12	64.68	63.31	70	56	27	32	25	BAY6001ZZx2	28	8
11	11	16A	H150	12	64.68	63.31	70	56	40	45	25	BAY6001ZZx2	28	8
12	12	16A	H200	12	64.68	63.31	70	56	54	59	27	BAY6201ZZx2	32	10
13	13	16	H100	15	64.68	63.31	70	56	27	32	29	BAY6002ZZx2	32	9
14	14	16	H150	15	64.68	63.31	70	56	40	45	29	BAY6002ZZx2	32	9
15	32	16	H200	15	64.68	63.31	70	56	54	59	30	BAY6202ZZx2	35	11
16	33	18	H100	20	72.77	71.39	80	60	27	32	37	BAY6004ZZx2	42	12
17	15	18	H150	20	72.77	71.39	80	60	40	45	37	BAY6004ZZx2	42	12
18	25	18	H200	20	72.77	71.39	80	60	54	59	41	BAY6204ZZx2	47	14
19	26	20	H100	20	80.85	79.48	87	67	27	32	37	BAY6004ZZx2	42	12
20	27	20	H150	20	80.85	79.48	87	67	40	45	41	BAY6204ZZx2	47	14
21	16	20	H200	20	80.85	79.48	87	67	54	59	41	BAY6204ZZx2	47	14
22	17	22	H100	20	88.94	87.56	95	75	27	32	37	BAY6004ZZx2	42	12
23	18	22	H150	20	88.94	87.56	95	75	40	45	41	BAY6204ZZx2	47	14
24	19	22	H200	20	88.94	87.56	95	75	54	59	41	BAY6204ZZx2	47	14
25	20	24	H100	25	97.02	95.65	104	84	27	32	42	BAY6005ZZx2	47	12
26	21	24	H150	25	97.02	95.65	104	84	40	45	46	BAY6205ZZx2	52	15
27	22	24	H200	25	97.02	95.65	104	84	54	59	46	BAY6205ZZx2	52	15
28	23	25	H100	25	101.1	99.69	111	90	27	32	42	BAY6005ZZx2	47	12
29	24	25	H150	25	101.1	99.69	111	90	40	45	46	BAY6205ZZx2	52	15
30	28	25	H200	25	101.1	99.69	111	90	54	59	46	BAY6205ZZx2	52	15
31	30	28	H100	25	113.2	111.8	123	102	27	32	42	BAY6005ZZx2	47	12
32	31	28	H150	30	113.2	111.8	123	102	40	45	56	BAY6206ZZx2	62	16
33	29	28	H200	30	113.2	111.8	123	102	54	59	56	BAY6206ZZx2	62	16
