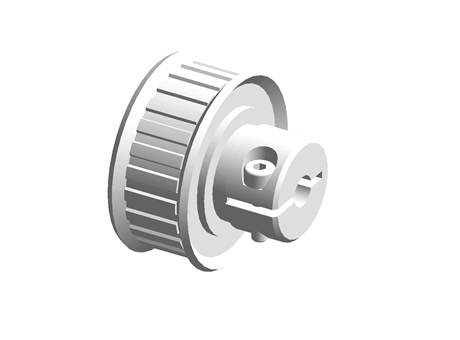

Clamping Type High Torque Synchronous Pulley EDA_S3M060/S3M100

Manufacturer	YIHEDA
Description	Clamping Type High Torque Synchronous Pulley EDA24S3M060-4
Part number	EDA24S3M060-4

CAD models

Request for quotation

Product selection

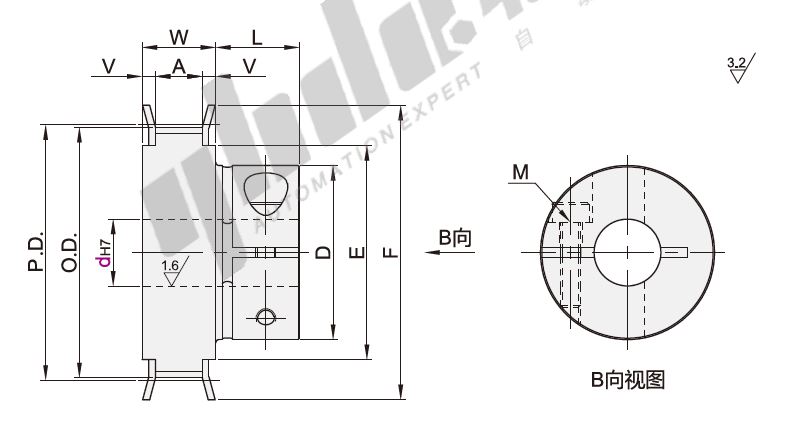

Index	Selector	Tooth Number	P.D.	O.D.	D	F	E	L	M
1	1	24	22.92	22.16	13	25	16	9	M2x8
2	2	26	24.83	24.07	13	28	18	9	M2x8
3	3	28	26.74	25.98	13	30	20	9	M2x8
4	4	30	28.65	27.89	20	32	23	9	M2.5x8
5	5	32	30.56	29.8	20	35	25	9	M2.5x8
6	6	36	34.38	33.62	26	40	28	12.5	M3x10
7	7	40	38.2	37.44	26	44	32	12.5	M3x10
8	8	44	42.02	41.25	31	48	36	14	M4x14
9	9	48	45.84	45.07	33	50	38	14	M4x14
10	10	50	57.75	46.98	36	52	40	14	M4x14
11	11	60	57.3	56.53	41	61	46	15.5	M5x16

d

4

Belt Width

Documentation

Technical Documents
