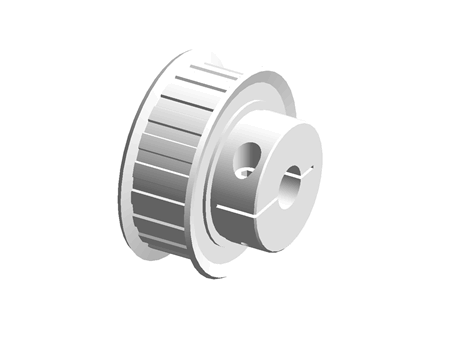

Clamping Type High Torque Synchronous Pulley EDA01_S8M150/S8M250

Manufacturer	YIHEDA
Description	Clamping Type High Torque Synchronous Pulley EDA0120S8M150-12
Part number	EDA0120S8M150-12

CAD models

Request for quotation

Product selection

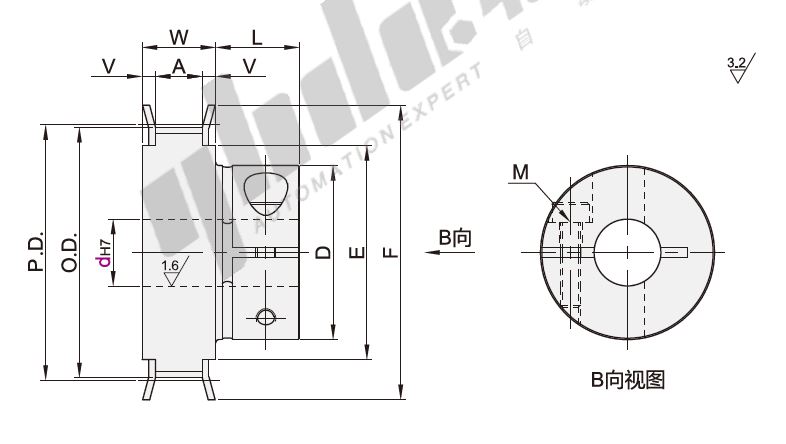

Index	Selector	Tooth Number	P.D.	O.D.	D	F	E	L	M_d≤19	M_d≥20
1	1	20	50.93	49.56	36	58	40	14	M4x14	M4x14
2	2	22	56.02	54.65	41	61	45	16	M5x16	M5x16
3	3	24	61.12	59.74	46	67	50	16	M5x16	M5x16
4	4	25	63.66	62.29	46	70	56	16	M5x16	M5x16
5	5	28	71.3	69.93	46	80	60	16	M5x16	M6x20
6	7	30	76.39	75.02	46	87	67	16	M5x16	M6x20
7	8	32	81.49	80.12	46	87	67	16	M5x16	M6x20
8	9	34	86.58	85.21	46	95	75	16	M5x16	M6x20
9	6	36	91.67	90.3	46	99	80	16	M5x16	M6x20

d

Belt Width

Documentation

Technical Documents
