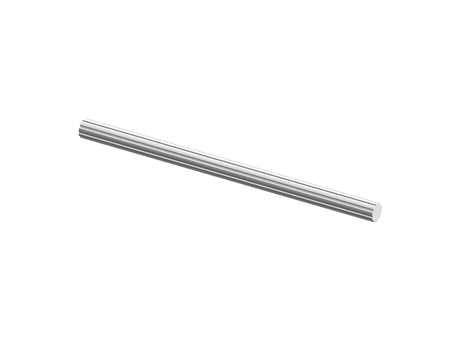

Bar Synchronous Pulley EUH51-MXL

Manufacturer	YIHEDA
Description	Bar Synchronous Pulley EUH51-MXL-10
Part number	EUH51-MXL-10

CAD models

Product selection

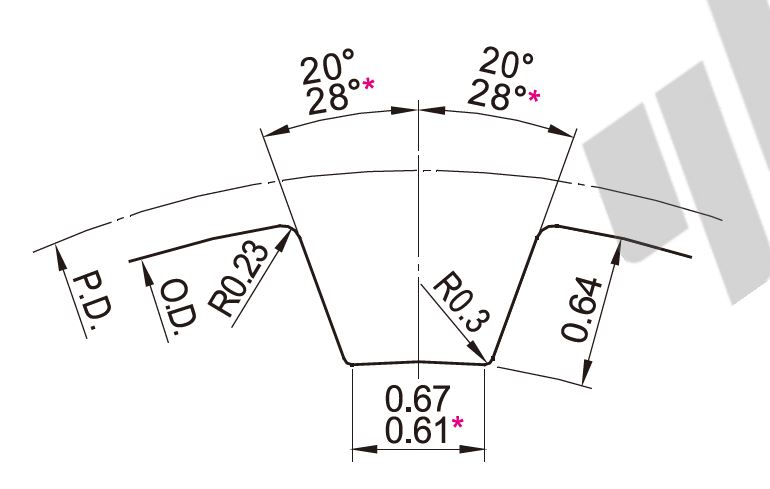

Index	Selector	Tooth Number	P.D.	O.D.
1	1	10	6.47	5.96
2	2	11	7.11	6.61
3	3	12	7.76	7.25
4	4	13	8.41	7.9
5	5	14	9.06	8.55
6	6	15	9.7	9.19
7	7	16	10.35	9.84
8	8	17	11	10.49
9	9	18	11.64	11.14
10	10	19	12.29	11.78
11	11	20	12.94	12.43
12	12	21	13.58	13.07
13	13	22	14.23	13.72
14	14	23	14.88	14.37
15	15	24	15.52	15.02
16	16	25	16.17	15.66
17	17	26	16.82	16.31
18	18	27	17.46	16.96
19	19	28	18.11	17.6
20	20	30	19.4	18.9
21	21	32	20.7	20.19
22	22	34	21.99	21.48
23	23	36	23.29	22.78
24	24	38	24.58	24.07
25	25	40	25.87	25.36
26	26	42	27.17	26.66
27	27	44	28.46	27.95
28	28	46	29.75	29.24
29	29	48	31.05	30.54
30	30	50	32.34	31.83
31	31	60	38.81	38.3
32	32	72	46.57	46.06
