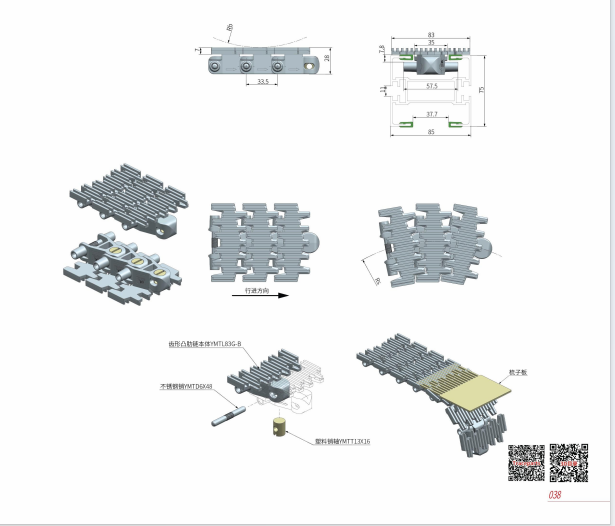

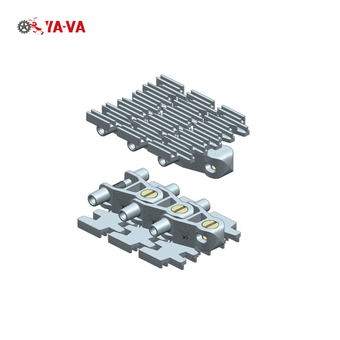

ribbed chain YM85

Manufacturer YA-VA Intelligent Systems Co., Ltd.
Description ribbed chain YM85 YMTL83G-C1
Manufacturer Part Number YMTL83G-C1
width 83
Rib height 3
pitch 33.5
Minimum lateral bending radius 160
Back bending radius 120
weight 1.50KG
colour WHITE
body material POM
plastic pivot material PA66
pin material SU304
working load <5000
conveyor length ≤12M
speed ≤50
working temperature -10~40
