By WÜRTH ELEKTRONIK

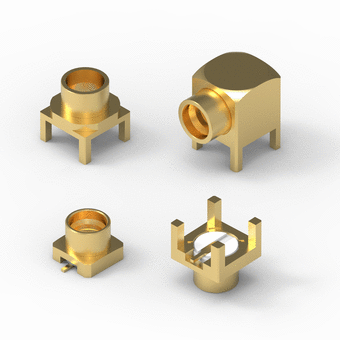

Coaxial connectors - SMP Connectors - PCB Straight THT Plug

Manufacturer	WÜRTH ELEKTRONIK
Description	SMP Connectors - PCB Straight THT Plug - Smooth Bore
Part Number	60114002122502
Insulator Material	PTFE
Insulator Colour	White
Contact Material	Brass
Contact Plating	Gold 0,127µm over Ni
Body Material	Brass
Body Plating	Gold 0,127µm over Ni
Quality Class	1000 Mating cycles
Operating Temperature	-65 °C up to +165 °C

Withstanding Voltage (KVAC/min)	0.5
Contact Resistance (mOHM)	2
Insulation Resistance	>5000 (MΩ)
Unbalance Impedance Ω	50
Frequency Range	DC~12 GHz
Compliance	RoHS / RACh / Halogen free
Packaging	Tray
Orientation 1	Straight
Option	Smooth Bore
Gender 1	Plug

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Datasheet	Description	Insulator Material	Insulator Colour	Contact Material	Contact Plating	Body Material	Body Plating	Quality Class	Operating Temperature	Withstanding Voltage (KVAC/min)	Contact Resistance (mOHM)	Insulation Resistance	Unbalance Impedance Ω	Frequency Range	Compliance	Packaging	Orientation 1	Option	Gender 1
1	1	60114002122502	Datasheet	SMP Connectors - PCB Straight THT Plug - Smooth Bore	PTFE	White	Brass	Gold 0,127µm over Ni	Brass	Gold 0,127µm over Ni	1000 Mating cycles	-65 °C up to +165 °C	0.5	2	>5000 (MΩ)	50	DC~12 GHz	RoHS / RACh / Halogen free	Tray	Straight	Smooth Bore	Plug
2	2	60124002122502	Datasheet	SMP Connectors - PCB Straight THT Plug - Limited Detent	PTFE	White	Brass	Gold 0,127µm over Ni	Brass	Gold 0,127µm over Ni	500 Mating cycles	-65 °C up to +165 °C	0.5	2	>5000 (MΩ)	50	DC~12 GHz	RoHS / RACh / Halogen free	Tray	Straight	Limited detent	Plug
