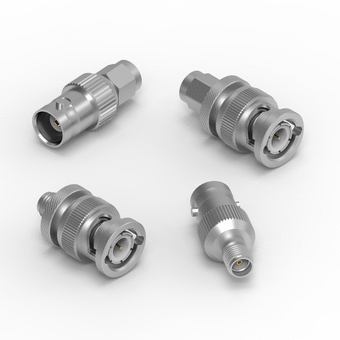

Coaxial connectors - Adaptor SMA to BNC

Manufacturer	WÜRTH ELEKTRONIK
Description	Coax Adaptor SMA to BNC
Part Number	64403107111000
Insulator Material	PTFE
Insulator Colour	White
Body Material	Brass
Body Plating	Nickel 2,54 μm over Copper
Center Pin Material	Phosphor Bronze
Center Pin Plating	Gold 0,076µm over Ni
Screw/Nut Material
Screw/Nut Plating
Quality Class	200 Mating cycles
Operating Temperature	-65 °C up to +165 °C
Withstanding Voltage (KVAC/min)	1.5

Contact Resistance (mOHM)	3
Insulation Resistance	>5000 (MΩ)
Unbalance Impedance Ω	50
Frequency Range	DC~4 (GHz)
Compliance	RoHS / REACh / Halogen free
Torque	0.57 Nm
Packaging	Bag
Type 1	SMA
Orientation 1	Straight
Gender 1	Jack
Type 2	BNC
Orientation 2	Straight
Gender 2	Jack

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Datasheet	Description	Insulator Material	Insulator Colour	Body Material	Body Plating	Center Pin Material	Center Pin Plating	Screw/Nut Material	Screw/Nut Plating	Quality Class	Operating Temperature	Withstanding Voltage (KVAC/min)	Contact Resistance (mOHM)	Insulation Resistance	Unbalance Impedance Ω	Frequency Range	Compliance	Torque	Packaging	Type 1	Orientation 1	Gender 1	Type 2	Orientation 2	Gender 2
1	1	64403107111000	Datasheet	Coax Adaptor SMA to BNC	PTFE	White	Brass	Nickel 2,54 μm over Copper	Phosphor Bronze	Gold 0,076µm over Ni			200 Mating cycles	-65 °C up to +165 °C	1.5	3	>5000 (MΩ)	50	DC~4 (GHz)	RoHS / REACh / Halogen free	0.57 Nm	Bag	SMA	Straight	Jack	BNC	Straight	Jack
2	2	64403107211000	Datasheet	Coax Adaptor SMA to BNC	PTFE	White	Brass	Nickel 2,54 μm over Copper	Phosphor Bronze	Gold 0,076µm over Ni	Brass	Nickel 2,54 μm over Copper	200 Mating cycles	-65 °C up to +165 °C	1.5	3	>5000 (MΩ)	50	DC~4 (GHz)	RoHS / REACh / Halogen free	0.57 Nm	Bag	SMA	Straight	Jack	BNC	Straight	Plug
3	3	64403207111000	Datasheet	Coax Adaptor SMA to BNC	PTFE	White	Brass	Nickel 2,54 μm over Copper	Phosphor Bronze	Gold 0,076µm over Ni	Brass	Nickel 2,54 μm over Copper	200 Mating cycles	-65 °C up to +165 °C	1.5	3	>5000 (MΩ)	50	DC~4 (GHz)	RoHS / REACh / Halogen free	0.57 Nm	Bag	SMA	Straight	Plug	BNC	Straight	Jack
4	4	64403207211000	Datasheet	Coax Adaptor SMA to BNC	PTFE	White	Brass	Nickel 2,54 μm over Copper	Phosphor Bronze	Gold 0,076µm over Ni	Brass	Nickel 2,54 μm over Copper	200 Mating cycles	-65 °C up to +165 °C	1.5	3	>5000 (MΩ)	50	DC~4 (GHz)	RoHS / REACh / Halogen free	0.57 Nm	Bag	SMA	Straight	Plug	BNC	Straight	Plug
