By WÜRTH ELEKTRONIK

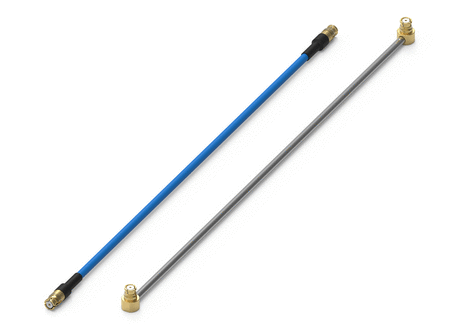

Cable assemblies - SMP Right Angle Jack to SMP Right Angle Jack

Manufacturer	WÜRTH ELEKTRONIK
Description	SMP R/A Jack to SMP R/A Jack - Cable .047"
Part Number	65503521115301
Quality Class	500 Mating cycles
Cable Type	Cable .047"
Operating Temperature	-55 °C up to +155 °C
Compliance	RoHS / RACh

Packaging	Bag
Type 1	SMP
Orientation 1	Right Angle
Gender 1	Jack
Type 2	SMP
Orientation 2	Right Angle
Gender 2	Jack

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Dimensional Drawing	Description	Insulator Material	Insulator Colour	Contact Material	Contact Plating	Contact Material 2	Contact Plating 2	Quality Class	Cable Type	Operating Temperature	Withstanding Voltage (KVAC/min)	Insulation Resistance	Unbalance Impedance Ω	Frequency Range	Compliance	Packaging	Type 1	Orientation 1	Gender 1	Type 2	Orientation 2	Gender 2	Reel length
1	1	65503521115301	Datasheet	SMP R/A Jack to SMP R/A Jack - Cable .047"	PTFE	White	Beryllium Copper	Gold 0,127µm over Ni	Beryllium Copper	Gold 0,127µm over Ni	500 Mating cycles	Cable .047"	-55 °C up to +155 °C	0.26	>5000 (MΩ)	50	DC~18 GHz	RoHS / RACh	Bag	SMP	Right Angle	Jack	SMP	Right Angle	Jack	152,4 (mm)

Documentation
