By WÜRTH ELEKTRONIK

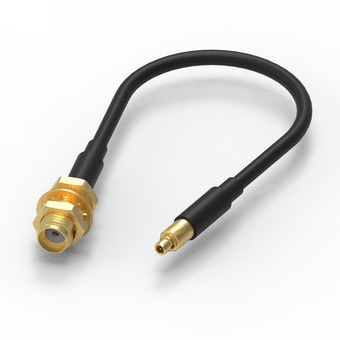

Cable assemblies - SMA Blkd Jack to MMCX Straight Plug

Manufacturer	WÜRTH ELEKTRONIK
Description	SMA Blkd Jack to MMCX Str. Plug - Cable RG-174/U
Part Number	65503260515303
Quality Class	500 Mating cycles
Cable Type	Cable RG-174/U
Operating Temperature	-20 °C up to +80 °C
Compliance	RoHS

Packaging	Bag
Type 1	SMA
Orientation 1	Straight
Gender 1	Jack
Type 2	MMCX
Orientation 2	Straight
Gender 2	Plug

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Dimensional Drawing	Description	Insulator Material	Insulator Colour	Contact Material	Contact Plating	Contact Material 2	Contact Plating 2	Screw/Nut Material	Screw/Nut Plating	Quality Class	Cable Type	Operating Temperature	Working Voltage (VAC)	Withstanding Voltage (KVAC/min)	Insulation Resistance	Unbalance Impedance Ω	Frequency Range	Compliance	Torque	Packaging	Type 1	Orientation 1	Gender 1	Type 2	Orientation 2	Gender 2	Reel length
1	1	65503260515303	Datasheet	SMA Blkd Jack to MMCX Str. Plug - Cable RG-174/U	PTFE	White	Beryllium Copper	Gold 0,076µm over Ni	Brass	Gold 0,076µm over Ni	Brass	Gold 0,076µm over Ni	500 Mating cycles	Cable RG-174/U	-20 °C up to +80 °C	170	0.5	>1000 (MΩ)	50	DC~1 GHz	RoHS	0.57 Nm	Bag	SMA	Straight	Jack	MMCX	Straight	Plug	152,4 (mm)
