By WÜRTH ELEKTRONIK

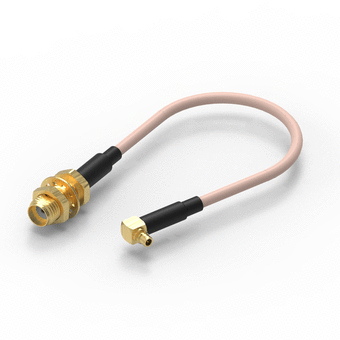

Cable assemblies - SMA Blkd Jack to MMCX Right Angle Plug

Manufacturer	WÜRTH ELEKTRONIK
Description	SMA Blkd Jack to MMCX R/A Plug - Cable RG-316
Part Number	65501910515301
Quality Class	500 Mating cycles
Cable Type	Cable RG-316
Operating Temperature	-55 °C up to +155 °C
Compliance	RoHS / RACh

Packaging	Bag
Type 1	SMA
Orientation 1	Straight
Gender 1	Jack
Type 2	MMCX
Orientation 2	Right Angle
Gender 2	Plug

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Dimensional Drawing	Description	Insulator Material	Insulator Colour	Contact Material	Contact Plating	Contact Material 2	Contact Plating 2	Cover Material	Cover Plating	Quality Class	Cable Type	Operating Temperature	Withstanding Voltage (KVAC/min)	Insulation Resistance	Unbalance Impedance Ω	Frequency Range	Compliance	Packaging	Type 1	Orientation 1	Gender 1	Type 2	Orientation 2	Gender 2	Reel length
1	1	65501910515301	Datasheet	SMA Blkd Jack to MMCX R/A Plug - Cable RG-316	PTFE	White	Beryllium Copper	Gold 0,076µm over Ni	Brass	Gold 0,076µm over Ni	Brass	Gold 0,076µm over Ni	500 Mating cycles	Cable RG-316	-55 °C up to +155 °C	0.5	>1000 (MΩ)	50	DC~6 GHz	RoHS / RACh	Bag	SMA	Straight	Jack	MMCX	Right Angle	Plug	152,4 (mm)
