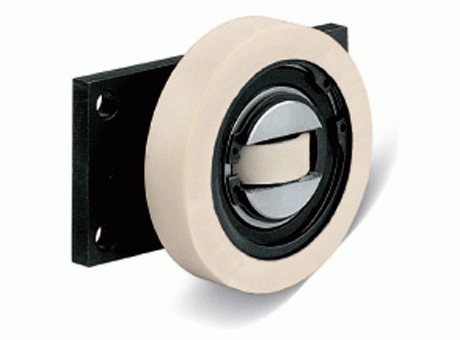

POLYAMIDE Combined Bearings

Quantity	Manufacturer	Description	Part number
1	WINKEL	WINKEL POLYAMID Bearing with flange plate TYPE PA 1012 AP - Ø 101,2 mm	231.200.000
1			PA 1012 AP

CAD models

Request for quotation

Product selection

Index	Selector	Type	Article no.	Weight (kg)	Profile

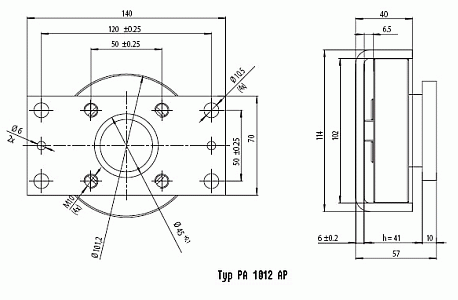

1	1	PA 1012 AP	231.200.000	1.6	V

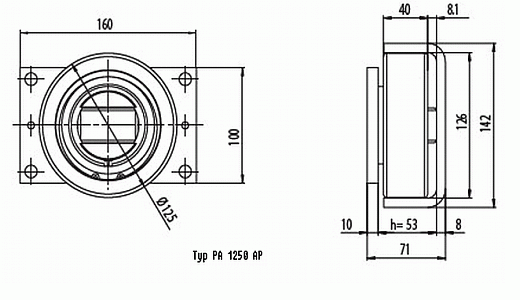

2	2	PA 1250 AP	231.201.000	4	R

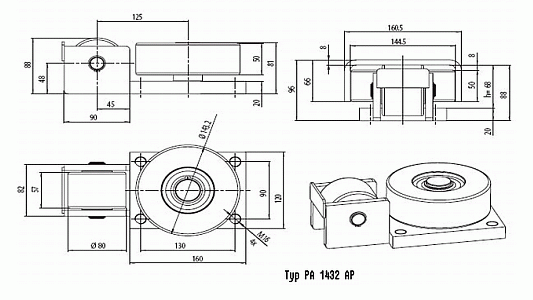

3	3	PA 1432 AP	231.202.000	9.2	W

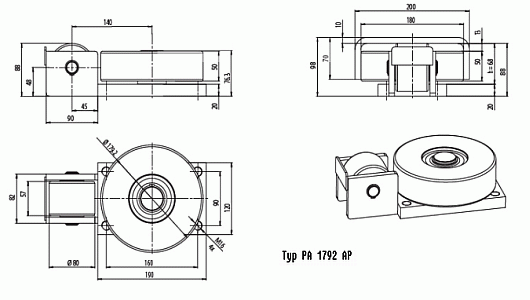

4	4	PA 1792 AP	231.203.000	12.2	X

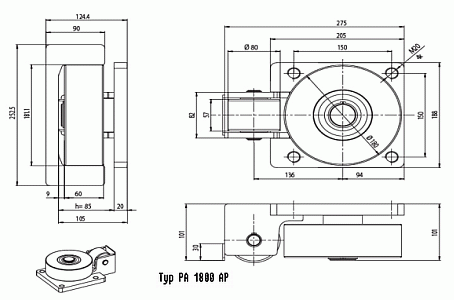

5	5	PA 1800 AP	231.204.000	12.5	Std 8

Contact the supplier

WINKEL

Heavy-duty components

WINKEL GmbH

WINKEL GmbH
Am ILLINGER Eck 7
Postfach 1108
75428 ILLINGEN
Germany
www.winkel.de
