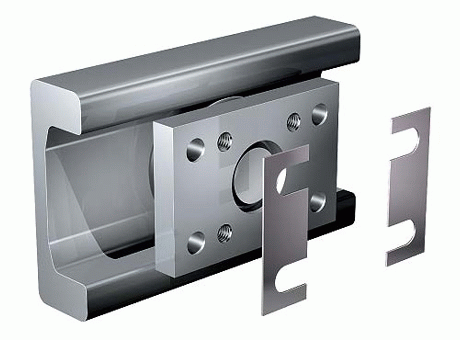

Flange plates rectangular for Combined Bearings and Radial Bearings

Manufacturer	WINKEL
Description	WINKEL flange plateType AP A - 65x45x5 mm, rectangular flange plate, oil blackened
Part number	212.042.000
Type	AP A
Part number1	DS-A-0.5
Note1	DS-A-0.5
Description1	washer

CAD models

Request for quotation

Product selection

Index	Selector	Type	Article no.	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G	H (mm)	T (mm)	Weight (kg)

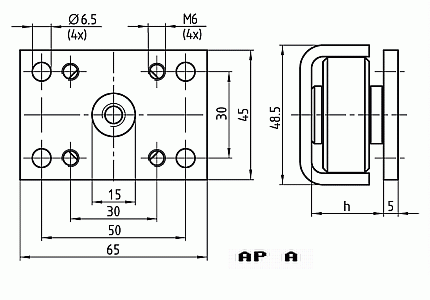

1	1	AP A	212.042.000	65	45	30	30	50	6.5	M6	15	5	0.1

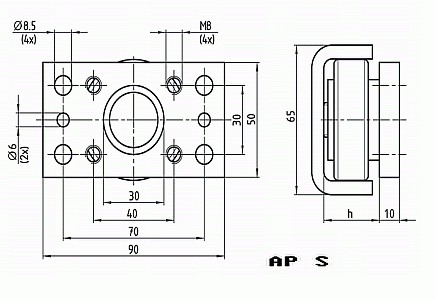

2	2	AP S	212.014.000	90	50	30	40	70	8.5	M8	30	10	0.25

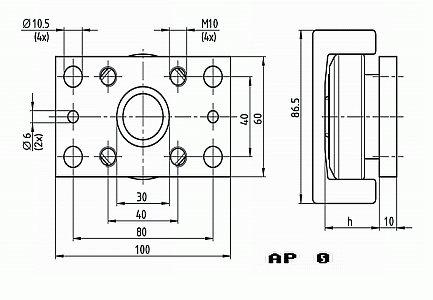

3	3	AP 0	212.003.000	100	60	40	40	80	10.5	M10	30	10	0.35

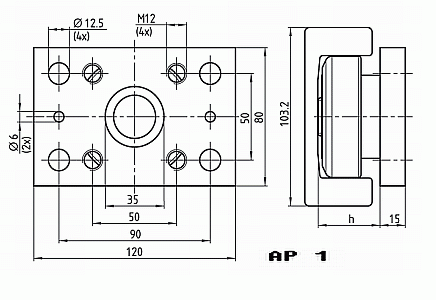

4	4	AP 1	212.004.000	120	80	50	50	90	12.5	M12	35	15	0.9

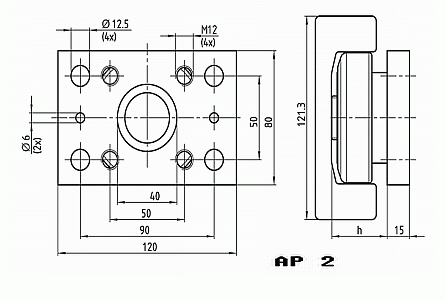

5	5	AP 2	212.005.000	120	80	50	50	90	12.5	M12	40	15	0.85

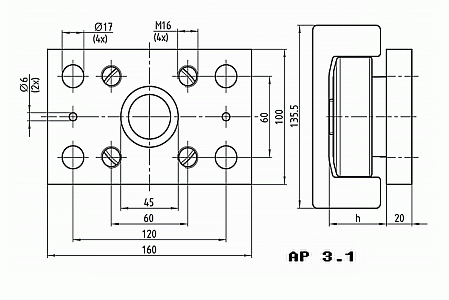

6	6	AP 3.1	212.006.001	160	100	60	60	120	17	M16	45	20	2.35

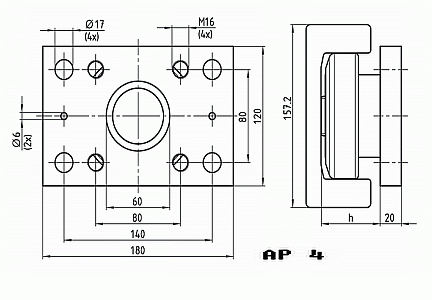

7	7	AP 4	212.007.001	180	120	80	80	140	17	M16	60	20	2.65

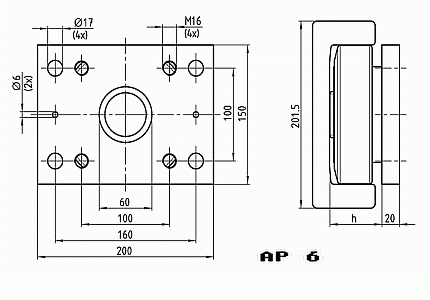

8	8	AP 6	212.008.000	200	150	100	100	160	17	M16	60	20	4

Washer

Contact the supplier
