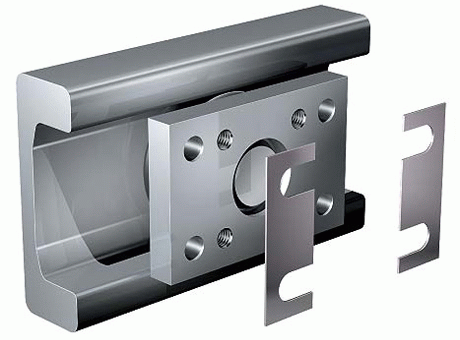

Flange plate in Inox

Quantity	Manufacturer	Description	Part number
1	WINKEL	WINKEL flange plate Type AP S INOX - 90x50x10 mm, rectangular, in stainless steel version	212.046.000
1			APS INOX

CAD models

Product selection

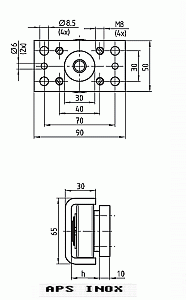

Index	Selector	Type	Article no.	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G	H (mm)	T (mm)	Weight (kg)
1	1	APS INOX	212.046.000	90	50	30	40	70	8.5	M8	30	10	0.25
2	2	AP1 INOX	212.043.000	120	80	50	50	90	12.5	M12	35	15	0.9
