By Walther Flender

Synchronous belts PowerGrip GT4 14M

The high performance generation of EPDM belts

Manufacturer	Walther Flender
Description	Synchronous belts PowerGrip GT4 14M/40
Manufacturer Part Number	GT4 14M 40
Drive calculation	https://walther-flender.de/en/tools-project-requests/tools/belt-drive-navigator/
Pitch (mm)	14
Width (mm)	40

CAD models

Request for quotation

Product selection

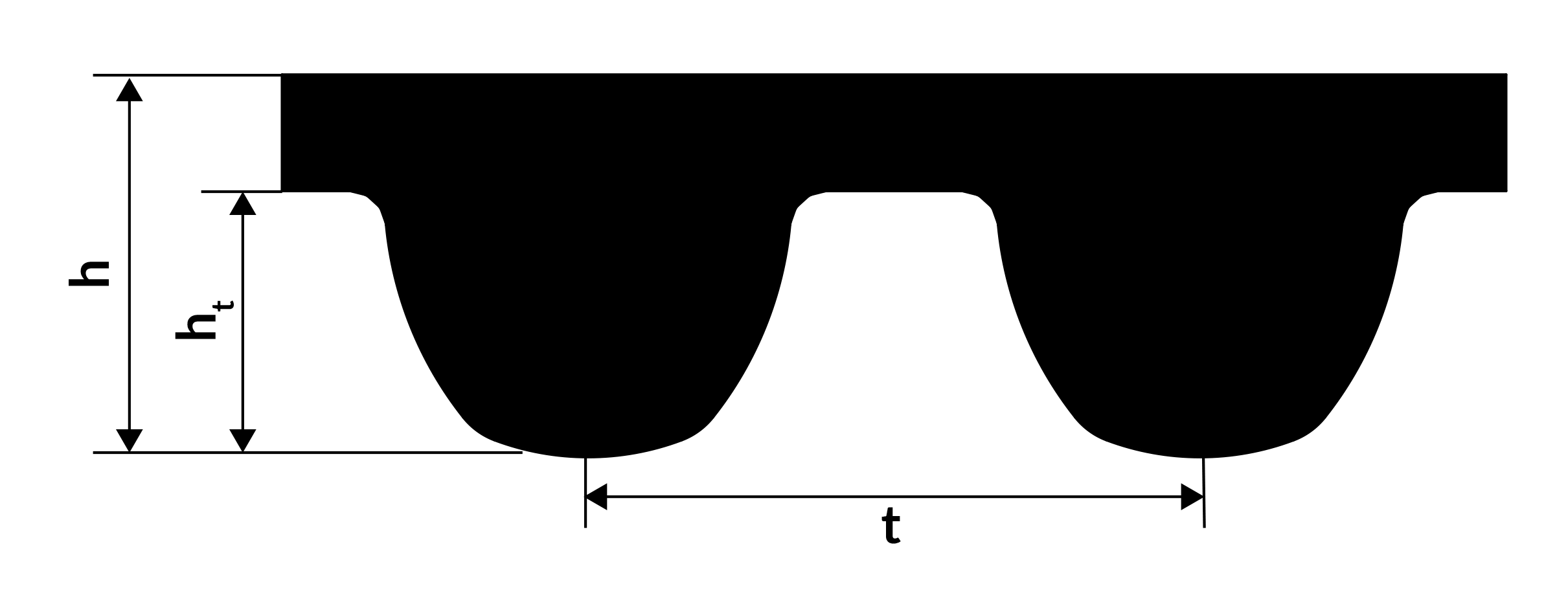

Index	Selector	Manufacturer Part Number	Description	Pitch (mm)	Width (mm)	Profile	Length (mm)	Number of teeth	Material	Tensile members (Standard)	Total height h (mm)	Tooth height ht (mm)	Weight per metre g/25 mm belt width
1	1	GT4 14M 40	Synchronous belts PowerGrip GT4 14M/40	14	40	GT	966-6.860	69-490	EPDM	Fibreglass	9,91	5,69	212.5
2	2	GT4 14M 55	Synchronous belts PowerGrip GT4 14M/55	14	55	GT	966-6.860	69-490	EPDM	Fibreglass	9,91	5,69	212.5
3	3	GT4 14M 85	Synchronous belts PowerGrip GT4 14M/85	14	85	GT	966-6.860	69-490	EPDM	Fibreglass	9,91	5,69	212.5
4	4	GT4 14M 115	Synchronous belts PowerGrip GT4 14M/115	14	115	GT	966-6.860	69-490	EPDM	Fibreglass	9,91	5,69	212.5
5	5	GT4 14M 170	Synchronous belts PowerGrip GT4 14M/170	14	170	GT	966-6.860	69-490	EPDM	Fibreglass	9,91	5,69	212.5

Product Description

Extremely powerful
High positioning accuracy
Low-noise run
Halogen-free

Documentation

Product data sheet

Drive calculation
