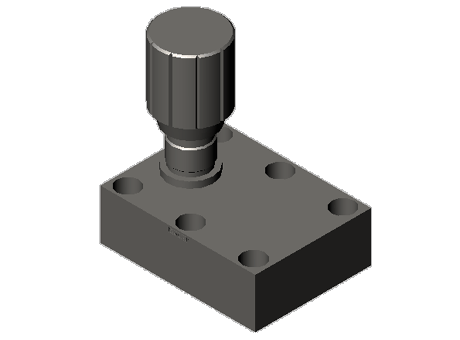

Throttle and shut-off valve, flow control valve DVP/DRVP (manifold mounting)

Manufacturer	Walter Stauffenberg GmbH & Co. KG
Description	Throttle and shut-off valve, flow control valve DVP/DRVP (manifold mounting)
Part number	DVP-06 - P

CAD models

Request for quotation

Product selection

Manifold Mounting

Index	Selector	nominal size DN	D1 (mm)	D3 (mm)	D4 (mm)	D5 (mm)	D6 (mm)	L3 (mm)	L4 (mm)	L7 (mm)	B1 (mm)	B2 (mm)	T1 (mm)	L1 (mm)	L5 (mm)	L6 (mm)	H1 (mm)	H2 (mm)	H3 (mm)
1	1	DVP-06	24	6.5	10.5	5	9.8	19	0	16	41.5	28.5	6.8	35	8	9.5	64	59	16
2	2	DVP-08	29	6.5	10.5	7	12.4	35	0	25.5	46	33.5	6.8	47.5	6.5	11	79	72	20
3	3	DVP-10	29	6.5	10.5	10	15.7	33.5	0	25.5	51	38	6.8	51	8.5	12.7	84	78	25
4	4	DVP-12	38	6.5	10.5	13	18.7	38	0	30	57.5	44.5	6.8	75	18.5	22.5	100	89	25
5	5	DVP-16	38	8.5	13.5	17	23.9	76	38	54	70	54	9	93.5	8.5	19.5	113	103	30
6	6	DVP-20	49	8.5	13.5	22	30.5	95	47.5	57	76.5	60	9	111	8	27	154	142	45
7	7	DVP-25	49	10.5	16.5	28.5	37.5	120	60	79.5	100	76	11	143	11	32	154	142	45
8	8	DVP-30	49	13	19	35	43.5	143	71.5	95	115	92	13	171	15	39	159	147	50

seal material

housing / spindle material

Contact the supplier
