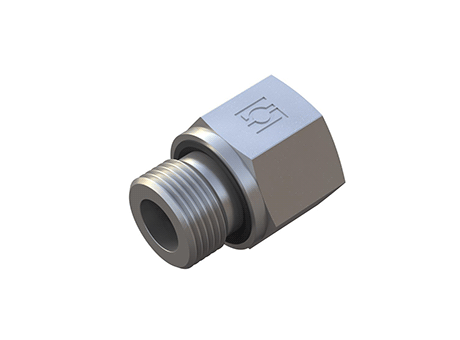

Thread Reducer Type FI-RED-...-WD

Manufacturer	Walter Stauffenberg GmbH & Co. KG
Description	Thread Reducer Type FI-RED-...-WD
Part number	FI-RED-R1/8-WD-R1/4-B-W3
Mass	4.3 kg

CAD models

Request for quotation

Product selection

Index	Selector	PN (bar)	Thread T1	Thread T2	D2	L1 (mm)	L2 (mm)	i (mm)	S1 (mm)	Version	Weight ca. per 100 (kg)	Ordering Codes
1	1	630	G 1/8''	G 1/4''	4	31	17	8	19	B	4.3	FI-RED-R1/8-WD-R1/4-B-W3
2	2	630	G 1/8"	G 3/8"	4	32	17	8	24	B	6.7	FI-RED-R1/8-WD-R3/8-B-W3
3	3	400	G 1/4"	G 1/8"	5	29	12	12	19	B	4.4	FI-RED-R1/4-WD-R1/8-B-W3
4	4	400	G 1/4"	G 3/8"	5	36	17	12	24	B	7.3	FI-RED-R1/4-WD-R3/8-B-W3
5	5	400	G 1/4"	G 1/2"	5	40	20	12	30	B	12.8	FI-RED-R1/4-WD-R1/2-B-W3
6	6	400	G 1/4"	G 3/4"	5	43	22	12	36	B	18.8	FI-RED-R1/4-WD-R3/4-B-W3
7	7	400	G 3/8"	G 1/8"	-	22.5	8.5	12	22	A	4.2	FI-RED-R3/8-WD-R1/8-B-W3
8	8	400	G 3/8"	G 1/4"	8	36	17	12	22	B	7.4	FI-RED-R3/8-WD-R1/4-B-W3
9	9	630	G 3/8"	G 1/2"	8	41	20	12	30	B	13.6	FI-RED-R3/8-WD-R1/2-B-W3
10	10	400	G 3/8"	G 3/4"	8	44	22	12	36	B	19.7	FI-RED-R3/8-WD-R3/4-B-W3
11	11	400	G 1/2"	G 1/8"	-	24	8	14	27	A	7	FI-RED-R1/2-WD-R1/8-B-W3
12	12	400	G 1/2"	G 1/4"	-	24	12	14	27	A	6.2	FI-RED-R1/2-WD-R1/4-B-W3
13	13	400	G 1/2"	G 3/8"	12	37	17	14	27	B	10.4	FI-RED-R1/2-WD-R3/8-B-W3
14	14	400	G 1/2"	G 3/4"	12	46	22	14	36	B	20.1	FI-RED-R1/2-WD-R3/4-B-W3
15	15	250	G 1/2"	G 1"	12	49	24.5	14	41	B	25.1	FI-RED-R1/2-WD-R1-B-W3
16	16	250	G 1/2"	G 1 1/4"	10	53	26.5	14	55	B	52.1	FI-RED-R1/2-WD-R1-1/4-B-W3
17	17	315	G 3/4"	G 1/4"	-	26	12.5	16	32	A	10.9	FI-RED-R3/4-WD-R1/4-B-W3
18	18	315	G 3/4"	G 3/8"	-	26	12.5	16	32	A	9.4	FI-RED-R3/4-WD-R3/8-B-W3
19	19	400	G 3/4"	G 1/2"	16	43	20	16	32	B	16.9	FI-RED-R3/4-WD-R1/2-B-W3
20	20	400	G 3/4"	G 1"	16	51	24.5	16	41	B	26.6	FI-RED-R3/4-WD-R1-B-W3
21	21	250	G 3/4"	G 1 1/4"	16	55	26.5	16	55	B	52.7	FI-RED-R3/4-WD-R1-1/4-B-W3
22	22	250	G 3/4"	G 1 1/2"	16	57	28.5	16	60	B	61.1	FI-RED-R3/4-WD-R1-1/2-B-W3
23	23	400	G 1"	G 1/4"	-	29	12.5	18	41	A	20.7	FI-RED-R1-WD-R1/4-B-W3
24	24	400	G 1"	G 3/8"	-	29	12.5	18	41	A	19.1	FI-RED-R1-WD-R3/8-B-W3
25	25	400	G 1"	G 1/2"	-	29	14.5	18	41	A	16.8	FI-RED-R1-WD-R1/2-B-W3
26	26	400	G 1"	G 3/4"	20	49	22	18	41	B	31.3	FI-RED-R1-WD-R3/4-B-W3
27	27	250	G 1"	G 1 1/4"	20	57	26.5	18	55	B	58.8	FI-RED-R1-WD-R1-1/4-B-W3
28	28	250	G 1"	G 1 1/2"	20	59	28.5	18	60	B	63.9	FI-RED-R1-WD-R1-1/2-B-W3
29	29	315	G 1 1/4"	G 1/2"	-	32	14.5	20	50	A	33	FI-RED-R1-1/4-WD-R1/2-B-W3
30	30	315	G 1 1/4"	G 3/4"	-	32	16.5	20	50	A	28.3	FI-RED-R1-1/4-WD-R3/4-B-W3
31	31	315	G 1 1/4"	G 1"	25	53	24.5	20	50	B	50.6	FI-RED-R1-1/4-WD-R1-B-W3
32	32	250	G 1 1/4"	G 1 1/2"	25	60	28.5	20	60	B	67.3	FI-RED-R1-1/4-WD-R1-1/2-B-W3
33	33	250	G 1 1/2"	G 1/2"	-	36	14.5	22	55	A	49.6	FI-RED-R1-1/2-WD-R1/2-B-W3
34	34	250	G 1 1/2"	G 3/4"	-	36	16	22	55	A	44.4	FI-RED-R1-1/2-WD-R3/4-B-W3
35	35	250	G 1 1/2"	G 1"	-	36	18.5	22	55	A	36.9	FI-RED-R1-1/2-WD-R1-B-W3
36	36	250	G 1 1/2"	G 1 1/4"	-	58	26.5	22	55	A	57.8	FI-RED-R1-1/2-WD-R1-1/4-B-W3
37	37	160	G 2"	G 1 1/4"	-	48	20.5	24	75	A	93.7	FI-RED-R2-WD-R1-1/4-B-W3
38	38	160	G 2"	G 1 1/2"	40	65	29	24	75	B	132.2	FI-RED-R2-WD-R1-1/2-B-W3
