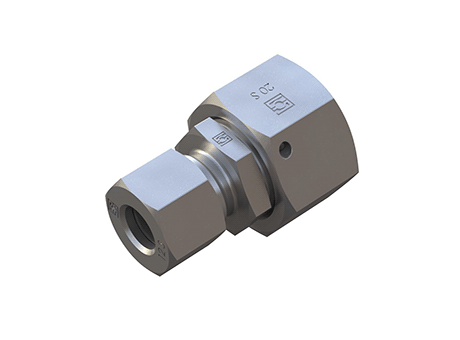

Straight Reducer for Tube Ends with 24° Taper / O-Ring (DKO) Type FI-REDSD Series L / S

Manufacturer	Walter Stauffenberg GmbH & Co. KG
Description	Straight Reducer for Tube Ends with 24° Taper / O-Ring (DKO) Type FI-REDSD Series L / S
Part number	FI-REDSD-08/06L-B-W3-DKO-MS
Mass	4.7 kg

CAD models

Request for quotation

Product selection

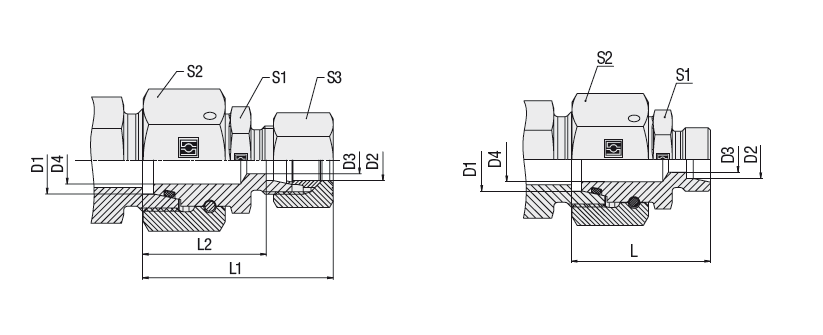

Index	Selector	Series	Tube OD D1 (mm)	D2 (mm)	PN (bar)	D3 (mm)	D4 (mm)	L (mm)	L1 (mm)	L2 (mm)	S1 (mm)	S2 (mm)	S3 (mm)	Weight ca. per 100 (kg)	Ordering Codes - Fitting body supplied with cutting ring & union nut
1	1	L	8	6	500	4	4	30	38	23.5	12	17	14	4.7	FI-REDSD-08/06L-B-W3-DKO-MS
2	2	L	10	6	500	4	4	32	40	25	14	19	14	5.8	FI-REDSD-10/06L-B-W3-DKO-MS
3	3	L	10	8	500	6	6	32	40	25	14	19	17	6.3	FI-REDSD-10/08L-B-W3-DKO-MS
4	4	L	12	6	400	4	4	32	40	25	17	22	14	7.4	FI-REDSD-12/06L-B-W3-DKO-MS
5	5	L	12	8	400	6	6	32	40	25	17	22	17	7.9	FI-REDSD-12/08L-B-W3-DKO-MS
6	6	L	12	10	400	8	8	33	41	26	17	22	19	8.3	FI-REDSD-12/10L-B-W3-DKO-MS
7	7	L	15	6	400	4	11	35	43	29	22	27	14	10.6	FI-REDSD-15/06L-B-W3-DKO-MS
8	8	L	15	8	400	6	11	35	43	29	22	27	17	11.5	FI-REDSD-15/08L-B-W3-DKO-MS
9	9	L	15	10	400	8	8	35	43	30	22	27	19	12.6	FI-REDSD-15/10L-B-W3-DKO-MS
10	10	L	15	12	400	10	10	36	44	30	22	27	22	13	FI-REDSD-15/12L-B-W3-DKO-MS
11	11	L	18	6	400	4	13	35	43	28	24	32	14	13	FI-REDSD-18/06L-B-W3-DKO-MS
12	12	L	18	8	400	6	13	35	43	28	24	32	17	13.7	FI-REDSD-18/08L-B-W3-DKO-MS
13	13	L	18	10	400	8	8	36	44	29	24	32	19	15.7	FI-REDSD-18/10L-B-W3-DKO-MS
14	14	L	18	12	400	10	10	36	44	29	24	32	22	16.1	FI-REDSD-18/12L-B-W3-DKO-MS
15	15	L	18	15	400	12	12	37	45	30	24	32	27	18	FI-REDSD-18/15L-B-W3-DKO-MS
16	16	L	22	6	250	4	17	38	47	32	27	36	14	18.7	FI-REDSD-22/06L-B-W3-DKO-MS
17	17	L	22	8	250	6	17	38	47	32	27	36	17	19.1	FI-REDSD-22/08L-B-W3-DKO-MS
18	18	L	22	10	250	8	17	39	48	33	27	36	19	19.7	FI-REDSD-22/10L-B-W3-DKO-MS
19	19	L	22	12	250	10	17	39	48	33	27	36	22	20.6	FI-REDSD-22/12L-B-W3-DKO-MS
20	20	L	22	15	250	12	12	40	49	34	27	36	27	25	FI-REDSD-22/15L-B-W3-DKO-MS
21	21	L	22	18	250	15	15	41	50	34	27	36	32	26.5	FI-REDSD-22/18L-B-W3-DKO-MS
22	22	L	28	6	250	4	23	40	49	34	36	46	14	32.7	FI-REDSD-28/06L-B-W3-DKO-MS
23	23	L	28	8	250	6	23	40	49	34	36	46	17	33.3	FI-REDSD-28/08L-B-W3-DKO-MS
24	24	L	28	10	250	8	23	41	50	35	36	46	19	32.8	FI-REDSD-28/10L-B-W3-DKO-MS
25	25	L	28	12	250	10	23	41	50	35	36	46	22	33.6	FI-REDSD-28/12L-B-W3-DKO-MS
26	26	L	28	15	250	12	23	42	51	36	36	46	27	36.1	FI-REDSD-28/15L-B-W3-DKO-MS
27	27	L	28	18	250	15	23	43	52	36	36	46	32	38.8	FI-REDSD-28/18L-B-W3-DKO-MS
28	28	L	28	22	250	19	23	45	54	38	36	46	36	41.7	FI-REDSD-28/22L-B-W3-DKO-MS
29	29	L	35	6	250	4	28	41	52	37	46	50	14	38.5	FI-REDSD-35/06L-B-W3-DKO-MS
30	30	L	35	8	250	6	28	41	52	37	46	50	17	39.2	FI-REDSD-35/08L-B-W3-DKO-MS
31	31	L	35	10	250	8	28	42	53	38	46	50	19	39.9	FI-REDSD-35/10L-B-W3-DKO-MS
32	32	L	35	12	250	10	28	42	53	38	46	50	22	39	FI-REDSD-35/12L-B-W3-DKO-MS
33	33	L	35	15	250	12	28	43	54	39	46	50	27	41.5	FI-REDSD-35/15L-B-W3-DKO-MS
34	34	L	35	18	250	15	28	44	55	39	46	50	32	44.3	FI-REDSD-35/18L-B-W3-DKO-MS
35	35	L	35	22	250	19	28	46	57	41	46	50	36	47.4	FI-REDSD-35/22L-B-W3-DKO-MS
36	36	L	35	28	250	24	24	46	57	41	46	50	41	52.5	FI-REDSD-35/28L-B-W3-DKO-MS
37	37	L	42	6	250	4	35	36	48	41	50	60	14	56.3	FI-REDSD-42/06L-B-W3-DKO-MS
38	38	L	42	8	250	6	35	36	48	41	50	60	17	57	FI-REDSD-42/08L-B-W3-DKO-MS
39	39	L	42	10	250	8	35	44	56	42	50	60	19	57.6	FI-REDSD-42/10L-B-W3-DKO-MS
40	40	L	42	12	250	10	35	44	56	42	50	60	22	58.4	FI-REDSD-42/12L-B-W3-DKO-MS
41	41	L	42	15	250	12	35	46	58	43	50	60	27	60.8	FI-REDSD-42/15L-B-W3-DKO-MS
42	42	L	42	18	250	15	35	46	58	42	50	60	32	63	FI-REDSD-42/18L-B-W3-DKO-MS
43	43	L	42	22	250	19	35	48	60	44	50	60	36	63.6	FI-REDSD-42/22L-B-W3-DKO-MS
44	44	L	42	28	250	24	35	49	61	44	50	60	41	65.6	FI-REDSD-42/28L-B-W3-DKO-MS
45	45	L	42	35	250	30	30	53	65	43	50	60	50	78.5	FI-REDSD-42/35L-B-W3-DKO-MS
46	46	S	8	6	800	4	4	34	42	27	14	19	17	6.1	FI-REDSD-08/06S-B-W3-DKO-MS
47	47	S	10	6	800	4	4	33	42	27.5	17	22	17	8.5	FI-REDSD-10/06S-B-W3-DKO-MS
48	48	S	10	8	800	5	5	33	42	27.5	17	22	19	9.1	FI-REDSD-10/08S-B-W3-DKO-MS
49	49	S	12	6	630	4	4	33	44	29	19	24	17	10.6	FI-REDSD-12/06S-B-W3-DKO-MS
50	50	S	12	8	630	5	5	33	44	29	19	24	19	11.1	FI-REDSD-12/08S-B-W3-DKO-MS
51	51	S	12	10	630	7	7	35	46	29.5	19	24	22	12.2	FI-REDSD-12/10S-B-W3-DKO-MS
52	52	S	14	6	630	4	4	36	46	32	22	27	17	13.1	FI-REDSD-14/06S-B-W3-DKO-MS
53	53	S	14	8	630	5	5	36	46	32	22	27	19	13.6	FI-REDSD-14/08S-B-W3-DKO-MS
54	54	S	14	10	630	7	7	37	47	31	22	27	22	14.4	FI-REDSD-14/10S-B-W3-DKO-MS
55	55	S	14	12	630	8	8	37	47	31	22	27	24	15.2	FI-REDSD-14/12S-B-W3-DKO-MS
56	56	S	16	6	630	4	11	37	47	32	22	30	17	13.8	FI-REDSD-16/06S-B-W3-DKO-MS
57	57	S	16	8	630	5	11	37	47	32	22	30	19	14.4	FI-REDSD-16/08S-B-W3-DKO-MS
58	58	S	16	10	630	7	7	38	48	31.5	22	30	22	16.7	FI-REDSD-16/10S-B-W3-DKO-MS
59	59	S	16	12	630	8	8	38	48	31.5	22	30	24	17.3	FI-REDSD-16/12S-B-W3-DKO-MS
60	60	S	16	14	630	10	10	41	51	33	24	30	27	19.9	FI-REDSD-16/14S-B-W3-DKO-MS
61	61	S	20	6	400	4	14	40	51	36	27	36	17	20.2	FI-REDSD-20/06S-B-W3-DKO-MS
62	62	S	20	8	400	5	14	40	51	36	27	36	19	21.1	FI-REDSD-20/08S-B-W3-DKO-MS
63	63	S	20	10	400	7	14	41	52	35.5	27	36	22	20.8	FI-REDSD-20/10S-B-W3-DKO-MS
64	64	S	20	12	400	8	14	41	52	35.5	27	36	24	21.5	FI-REDSD-20/12S-B-W3-DKO-MS
65	65	S	20	14	400	10	14	44	55	37	27	36	27	23.9	FI-REDSD-20/14S-B-W3-DKO-MS
66	66	S	20	16	400	12	12	44	55	36.5	27	36	30	28	FI-REDSD-20/16S-B-W3-DKO-MS
67	67	S	25	6	400	4	18	41	53	38.5	36	46	17	33.8	FI-REDSD-25/06S-B-W3-DKO-MS
68	68	S	25	8	400	5	18	41	53	38.5	36	46	19	34.5	FI-REDSD-25/08S-B-W3-DKO-MS
69	69	S	25	10	400	7	18	42	54	38	36	46	22	35.8	FI-REDSD-25/10S-B-W3-DKO-MS
70	70	S	25	12	400	8	18	42	54	38	36	46	24	36.6	FI-REDSD-25/12S-B-W3-DKO-MS
71	71	S	25	14	400	10	18	45	57	40	36	46	27	39.2	FI-REDSD-25/14S-B-W3-DKO-MS
72	72	S	25	16	400	12	18	45	57	39	36	46	30	40.7	FI-REDSD-25/16S-B-W3-DKO-MS
73	73	S	25	20	400	16	16	49	61	39	36	46	36	47.7	FI-REDSD-25/20S-B-W3-DKO-MS
74	74	S	30	6	400	4	22	46	59	44	41	50	17	42.4	FI-REDSD-30/06S-B-W3-DKO-MS
75	75	S	30	8	400	5	22	46	59	44	41	50	19	42.5	FI-REDSD-30/08S-B-W3-DKO-MS
76	76	S	30	10	400	7	22	47	60	43.5	41	50	22	44.4	FI-REDSD-30/10S-B-W3-DKO-MS
77	77	S	30	12	400	8	22	47	60	43.5	41	50	24	45.1	FI-REDSD-30/12S-B-W3-DKO-MS
78	78	S	30	14	400	10	22	50	63	45	41	50	27	47.7	FI-REDSD-30/14S-B-W3-DKO-MS
79	79	S	30	16	400	12	22	50	63	44.5	41	50	30	49.1	FI-REDSD-30/16S-B-W3-DKO-MS
80	80	S	30	20	400	16	22	53	66	44.5	41	50	36	55.1	FI-REDSD-30/20S-B-W3-DKO-MS
81	81	S	30	25	400	20	20	56	69	45	41	50	46	68.9	FI-REDSD-30/25S-B-W3-DKO-MS
82	82	S	38	6	400	4	30	47	62	47.5	50	60	17	60.5	FI-REDSD-38/06S-B-W3-DKO-MS
83	83	S	38	8	400	5	30	47	62	47.5	50	60	19	61.1	FI-REDSD-38/08S-B-W3-DKO-MS
84	84	S	38	10	400	7	30	48	63	47	50	60	22	62.5	FI-REDSD-38/10S-B-W3-DKO-MS
85	85	S	38	12	400	8	30	48	63	47	50	60	24	63.2	FI-REDSD-38/12S-B-W3-DKO-MS
86	86	S	38	14	400	10	30	51	66	49	50	60	27	65.8	FI-REDSD-38/14S-B-W3-DKO-MS
87	87	S	38	16	400	12	30	51	66	48	50	60	30	67.3	FI-REDSD-38/16S-B-W3-DKO-MS
88	88	S	38	20	400	16	30	55	70	48	50	60	36	73.2	FI-REDSD-38/20S-B-W3-DKO-MS
89	89	S	38	25	400	20	30	58	73	48.5	50	60	46	85.9	FI-REDSD-38/25S-B-W3-DKO-MS
90	90	S	38	30	400	25	25	61	76	49	50	60	50	94.5	FI-REDSD-38/30S-B-W3-DKO-MS
