By Walter Stauffenberg GmbH & Co. KG

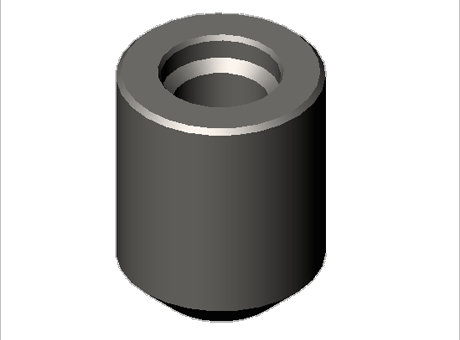

STAUFF Test, Thread adaptor and welding adaptor, Welding adaptor SAS

Manufacturer	Walter Stauffenberg GmbH & Co. KG
Description	STAUFF Test, Thread adaptor and welding adaptor, Welding adaptor SAS
Part number	SAS-M10x1

CAD models

Request for quotation

Product selection

Index	Selector	connection thread G	Form Threaded port	h (mm)	d (mm)	Ordering code
1	1	M10x1	A	25	20	SAS-M10x1
2	2	G1/8	B/C	25	20	SAS-G1/8
3	3	G1/4	B/C	30	22	SAS-G1/4
4	4	G3/8	B/C	30	25	SAS-G3/8
5	5	1/4NPT	D	25	20	SAS-1/4NPT
6	6	1/2-20UNF	E	25	20	SAS-1/2UNF
