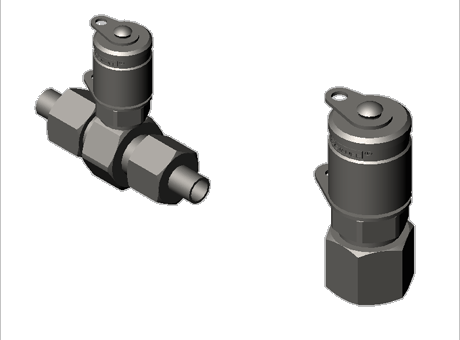

STAUFF Test 20 - Connection M16x2, STAUFF Test coupling SMK (compression ring fitting)

Manufacturer	Walter Stauffenberg GmbH & Co. KG
Description	STAUFF Test 20 - Connection M16x2, STAUFF Test coupling SMK (compression ring fitting)
Part number	SMK20-06L-PG

CAD models

Product selection

Index	Selector	series	PN (bar)	Pipe d (mm)	l1 (mm)	l2 (mm)	l3 (mm)	h (mm)	SW 1 (mm)	SW 2 (mm)	version
1	1	L	315	6	51	21	15.5	49	24	14	A
2	2	L	315	8	51	21	15.5	49	24	17	A
3	3	L	315	10	53	23	16.5	49	24	19	A
4	4	L	315	12	53	23	17.5	50.5	27	22	A
5	5	L	315	15	55	25	21	52	30	27	B
6	6	L	315	18	57	24	19.5	53	32	32	B
7	7	L	160	22	61	28	20.5	55	36	36	B
8	8	L	160	28	61	28	25	57.5	41	41	B
9	9	L	160	35	69	26	30	60	46	50	B
10	10	L	160	42	71	25	31	64.5	55	60	B
11	11	S	630	6	55	25	14.5	49	24	17	A
12	12	S	630	8	55	25	16.5	49	24	19	A
13	13	S	630	10	57	24	16.5	49	24	22	A
14	14	S	630	12	57	24	17.5	49	24	24	A
15	15	S	630	14	63	27	19.5	50.5	27	27	B
16	16	S	400	16	63	26	18	52	30	30	B
17	17	S	400	20	69	26	24	55	36	36	B
18	18	S	400	25	75	27	26	57.5	41	46	B
19	19	S	400	30	81	28	30	60	46	50	B
20	20	S	315	38	91	29	34	64.5	55	60	B

seal
