By Walter Stauffenberg GmbH & Co. KG

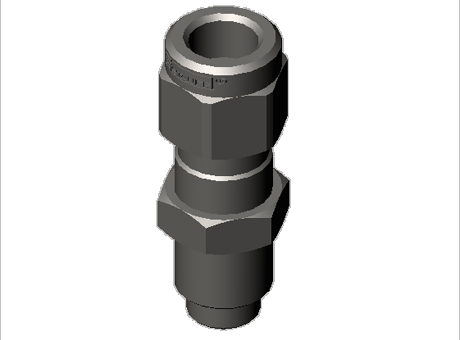

STAUFF Test 20 - Connection M16x2, Gauge adaptor SMA

Manufacturer	Walter Stauffenberg GmbH & Co. KG
Description	STAUFF Test 20 - Connection M16x2, Gauge adaptor SMA
Part number	SMA20-G1/4-P-OR

CAD models

Request for quotation

Product selection

Index	Selector	connection thread G	h (mm)	SW (mm)
1	1	G1/4	54	19
2	2	G1/2	64	27
3	3	1/4 NPT	54	19
4	4	1/2 NPT	64	27
5	5	7/16-20 UNF	54	19
6	6	9/16-18 UNF	57	19

seal

Position of screw nut (mm)

Contact the supplier
