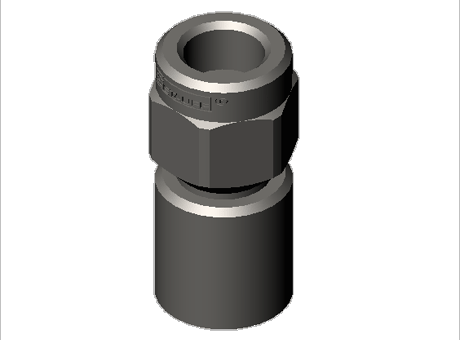

STAUFF Test 20 - Connection M16x2, Direct gauge adaptor SMD

Manufacturer	Walter Stauffenberg GmbH & Co. KG
Description	STAUFF Test 20 - Connection M16x2, Direct gauge adaptor SMD
Part number	SMD20-G1/4-P-OR

CAD models

Request for quotation

Product selection

Index	Selector	connection thread G	h (mm)	SW (mm)
1	1	G1/4	41	19
2	2	G1/2	51	27
3	3	1/4 NPT	41	19
4	4	1/2 NPT	51	27
5	5	7/16-20 UNF	41	19
6	6	9/16-18 UNF	43.5	19

seal
