By Walter Stauffenberg GmbH & Co. KG

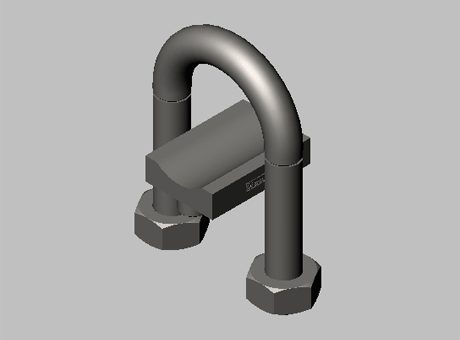

Round Steel U-Bolt Clamps with Plastic Saddle (Short), Type RB/RUK

Manufacturer	Walter Stauffenberg GmbH & Co. KG
Description	Round Steel U-Bolt Clamps with Plastic Saddle (Short), Type RB/RUK
Part number	RB W1 RUK/PP 25

CAD models

Request for quotation

Product selection

Index	Selector	DN (mm)	L1 (mm)	H1 (mm)	L2 (mm)	L3 (mm)	B (mm)	H6 (mm)	G
1	1	20	40	73.5	35	25	24	8	M10
2	2	25	48	81	35	25	24	8	M10
3	3	32	56	89	35	25	24	8	M10
4	4	40	62	100	35	25	24	8	M10
5	5	50	76	118	38	25	50	10	M12
6	6	65	94	135	38	25	50	10	M12
7	7	80	106	152	75	40	70	17	M12
8	8	100	136	190	75	40	70	17	M16
9	9	125	164	217	75	40	70	17	M16
10	10	150	192	247	140	90	75	26	M16
11	11	175	218	273	140	90	75	26	M16
12	12	200	248	311	140	90	75	26	M20
13	13	250	302	364	140	90	75	26	M20
14	14	300	352	418	220	150	75	32	M20
15	15	350	402	475	220	150	75	32	M24
16	16	400	452	526	220	150	75	32	M24
17	17	500	554	627	220	150	75	32	M24

Index	Selector	Pipe / Tube O.D. ØD1 (mm)	Pipe / Tube O.D. ØD (Nominal Bore Pipe)
1	1	25	-
2	2	26.9	3/4

Index	Selector	Material and Surfaces for Round Steel U-Bolts	W-Code
1	1	carbon steel St 37, untreated	W1
2	2	carbon steel St 37, zinc plated (Fe/Zn 8 C)	W3
3	3	stainless steel A4 - 1.4401/1.4571 (AISI 316/316Ti)	W5

Saddle Material, Individual Part

Contact the supplier
