By Walter Stauffenberg GmbH & Co. KG

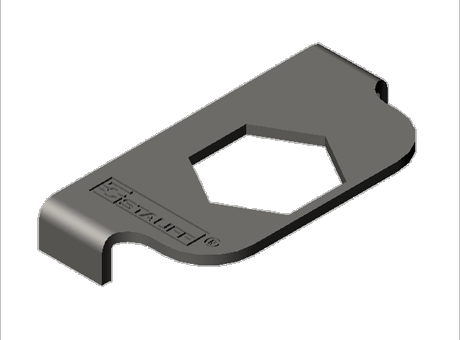

Pipe Clamps Standard Series DIN 3015, Safety Locking Plate SIG

Manufacturer	Walter Stauffenberg GmbH & Co. KG
Standard	DIN 3015
Description	Pipe Clamps Standard Series DIN 3015, Safety Locking Plate SIG
Part number	SIG 1 W3

CAD models

Request for quotation

Product selection

Index	Selector	STAUFF Group	DIN Group	L (mm)	B1 (mm)	B2 (mm)	S (mm)
1	1	1	0	16	32	11.2	1
2	2	1A	1	33	28	11.2	1
3	3	2	2	39	28	11.2	1
4	4	3	3	47	28	11.2	1
5	5	4	4	56	28	11.2	1
6	6	5	5	69	28	11.2	1
7	7	6	6	85	28	11.2	1
8	8	7	7	117	28	11.2	1
9	9	8	8	143	28	11.2	1

Index	Selector	Material and surface finishing	W-Code
1	1	carbon steel St37, zinc/nickel coated	W3
2	2	carbon steel St37, untreated	W1
3	3	carbon steel St37, phosphated	W2
4	4	stainless steel A2 - 1.4301/1.4305 (AISI 304)	W4
5	5	stainless steel A4 - 1.4401/1.4571 (AISI 316/316Ti)	W5
