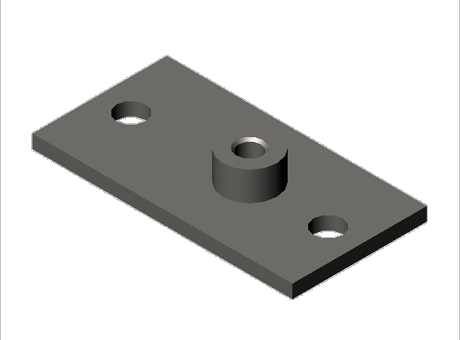

Pipe Clamps Standard Series DIN 3015, Elongated Weld Plate SPV

Manufacturer	Walter Stauffenberg GmbH & Co. KG
Standard	DIN 3015
Description	Pipe Clamps Standard Series DIN 3015, Elongated Weld Plate SPV
Part number	SPV 1 M W2

CAD models

Request for quotation

Product selection

Index	Selector	STAUFF Group	DIN Group	L1 (mm)	L2 (mm)	L3 (mm)	B (mm)	S (mm)	H (mm)	ØD1 (mm)	ØD2 (mm)
1	1	1	0	58	24.5	44	30	3	6.5	12	6.5
2	2	1A	1	64	20	50	30	3	6.5	12	6.5
3	3	2	2	70	26	56	30	3	6.5	12	6.5
4	4	3	3	78	33	64	30	3	6.5	12	6.5
5	5	4	4	87	40	73	30	3	6.5	12	6.5
6	6	5	5	100	52	86	30	3	6.5	12	6.5
7	7	6	6	115	66	100	30	3	6.5	12	6.5
8	8	7	7	150	94	136	30	5	6.5	12	6.5
9	9	8	8	178	120	162	30	5	6.5	12	6.5

Index	Selector	Type of Thread	G
1	1	Metric thread	M 6
2	2	UNC thread	1/4-20 UNC

Index	Selector	Material and surface finishing	W-Code
1	1	carbon steel St37, phosphated	W2
2	2	carbon steel St37, untreated	W1
3	3	carbon steel St37, zinc/nickel coated	W3
4	4	stainless steel A2 - 1.4301/1.4305 (AISI 304)	W4
5	5	stainless steel A4 - 1.4401/1.4571 (AISI 316/316Ti)	W5
