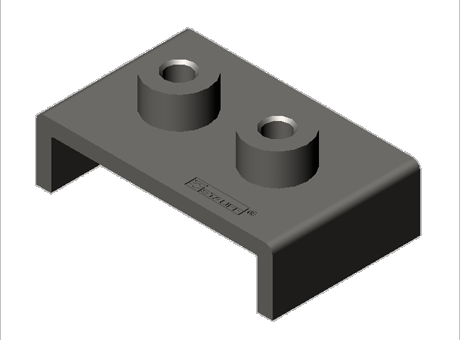

Pipe Clamps Standard Series DIN 3015, Bridge Weld Plate BSP

Manufacturer	Walter Stauffenberg GmbH & Co. KG
Standard	DIN 3015
Description	Pipe Clamps Standard Series DIN 3015, Bridge Weld Plate BSP
Part number	BSP 1A M W1

CAD models

Request for quotation

Product selection

Index	Selector	STAUFF Group	DIN Group	L1 (mm)	L2 (mm)	B (mm)	S (mm)	H1 (mm)	H2 (mm)	ØD (mm)
1	1	1A	1	48	20	30	3	13	6.5	12
2	2	2	2	54	26	30	3	13	6.5	12
3	3	3	3	62	33	30	3	13	6.5	12
4	4	4	4	71	40	30	3	13	6.5	12
5	5	5	5	85	52	30	3	13	6.5	12
6	6	6	6	98	66	30	3	13	6.5	12

Index	Selector	Type of Thread	G
1	1	Metric thread	M 6
2	2	UNC thread	1/4-20 UNC

Index	Selector	Material and surface finishing	W-Code
1	1	carbon steel St37, untreated	W1
2	2	carbon steel St37, phosphated	W2
3	3	carbon steel St37, zinc/nickel coated	W3
4	4	stainless steel A2 - 1.4301/1.4305 (AISI 304)	W4
5	5	stainless steel A4 - 1.4401/1.4571 (AISI 316/316Ti)	W5
