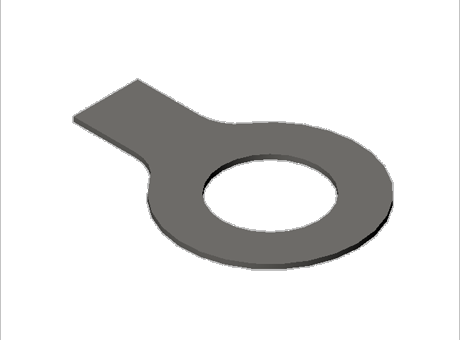

Pipe Clamps Heavy Series DIN 3015, Safety Locking Plate SI

Manufacturer	Walter Stauffenberg GmbH & Co. KG
Standard	DIN 3015
Description	Pipe Clamps Heavy Series DIN 3015, Safety Locking Plate SI
Part number	SI-10.5 W3

CAD models

Request for quotation

Product selection

Index	Selector	STAUFF Group	DIN Group	ØD (mm)
1	1	3 S - 5 S	1	10.5
2	2	6 S	4	13
3	3	7 S	5	17
4	4	8 S	6	21
5	5	9 S	7	25
6	6	10 S - 12 S	8	31

Index	Selector	Material and surface finishing	W-Code
1	1	carbon steel St37, zinc/nickel coated	W3
2	2	carbon steel St37, untreated	W1
3	3	carbon steel St37, phosphated	W2
4	4	stainless steel A2 - 1.4301/1.4305 (AISI 304)	W4
5	5	stainless steel A4 - 1.4401/1.4571 (AISI 316/316Ti)	W5
