By Walter Stauffenberg GmbH & Co. KG

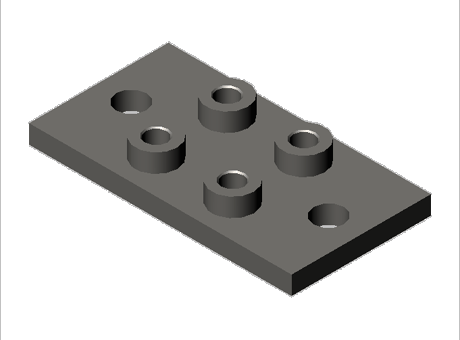

Pipe Clamps Heavy Series DIN 3015, Elongated Weld Plate for Double Clamps SPAS/DUEB

Manufacturer	Walter Stauffenberg GmbH & Co. KG
Standard	DIN 3015
Description	Pipe Clamps Heavy Series DIN 3015, Elongated Weld Plate for Double Clamps SPAS/DUEB
Part number	SPAS/DUEB 3 S M W2

CAD models

Request for quotation

Product selection

Index	Selector	STAUFF Group	DIN Group	L1 (mm)	L2 (mm)	L3 (mm)	B1 (mm)	B2 (mm)	S (mm)	H (mm)	ØD1 (mm)	ØD2 (mm)
1	1	3 S	1	113	33	85	60	30.5	8	8	18	13
2	2	4 S	2	125	45	97	60	30.5	8	8	18	13
3	3	5 S	3	140	60	112	60	30.5	8	8	18	13
4	4	6 S	4	187	90	155	90	46	10	8	20	16
5	5	7 S	5	238	122	198	120	61	10	12	24	21
6	6	8 S	6	309	168	259	160	81	15	18	30	26
7	7	9 S	7	370	205	310	180	91	15	21	35	31
8	8	10 S	8	440	265	380	240	121	25	21	45	31
9	9	11 S	9	590	395	530	324	166	30	38	50	31
10	10	12 S	10	750	534	690	394	186	30	38	50	31

Index	Selector	Type of Thread	G
1	1	Metric thread	M 10
2	2	UNC thread	3/8-16 UNC

Index	Selector	Material and surface finishing	W-Code
1	1	carbon steel St37, phosphated	W2
2	2	carbon steel St37, untreated	W1
3	3	carbon steel St37, zinc/nickel coated	W3
4	4	stainless steel A2 - 1.4301/1.4305 (AISI 304)	W4
5	5	stainless steel A4 - 1.4401/1.4571 (AISI 316/316Ti)	W5
