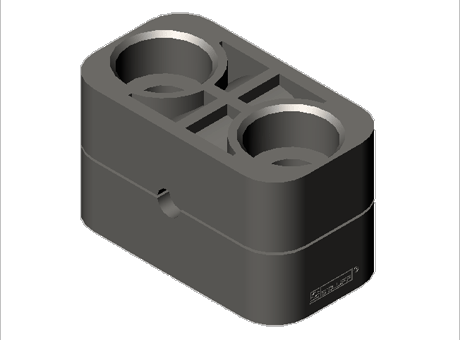

Pipe Clamps Heavy Series DIN 3015, Clamp Body

Manufacturer	Walter Stauffenberg GmbH & Co. KG
Standard	DIN 3015
Description	Pipe Clamps Heavy Series DIN 3015, Clamp Body
Part number	3006 PP

CAD models

Request for quotation

Product selection

Index	Selector	STAUFF Group	DIN Group	L1 - PP/PA (mm)	L1 - AL (mm)	L2 (mm)	Weight (mm)
1	1	3 S	1	55	56	33	30.5
2	2	4 S	2	70	70	45	30.5
3	3	5 S	3	85	85	60	30.5
4	4	6 S	4	115	120	90	45
5	5	7 S	5	152	150	122	60
6	6	8 S	6	206	208	168	80
7	7	9 S	7	251	255	205	91
8	8	10 S	8	336	326	265	120
9	9	11 S	9	470	470	395	162
10	10	12 S	10	630	630	534	182

Index	Selector	Outsidediameter D1 (mm)	Pipe O.D.(inch)	Nominal Bore (inch)
1	1	6
2	2	6.4	1/4
3	3	8	5/16
4	4	9.5	3/8
5	5	10		1/8
6	6	12
7	7	12.7	1/2
8	8	13.5		1/4
9	9	14
10	10	15
11	11	16	5/8
12	12	17.2		3/8
13	13	18
