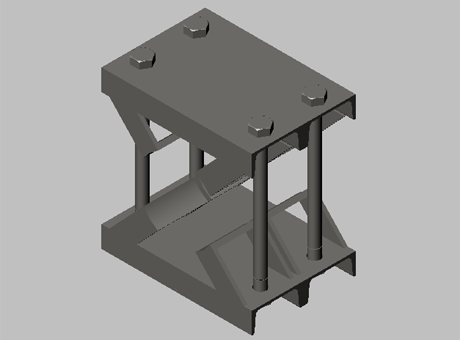

Pipe Clamps Construction Series, Type DKS

Manufacturer	Walter Stauffenberg GmbH & Co. KG
Description	Pipe Clamps Construction Series, Type DKS
Part number	DKS 220 W7 PP

CAD models

Request for quotation

Product selection

Index	Selector	Pipe / Tube O.D. ØD1 in mm	L1 (mm)	H1 (mm)	H2 (mm)	B2 (mm)	Hexagon Head Bolts
1	1	220 to 275	420	220	220	290	M30 x 420
2	2	276 to 325	460	240	240	290	M30 x 460
3	3	326 to 370	510	260	260	290	M30 x 500
4	4	371 to 425	570	290	290	290	M30 x 560
5	5	426 to 485	620	305	305	290	M30 x 590
6	6	486 to 550	680	370	370	290	M30 x 720
7	7	551 to 630	760	410	410	290	M30 x 800
8	8	631 to 715	845	452	452	290	M30 x 884
9	9	716 to 800	940	495	495	290	M30 x 970

Pipe / Tube O.D. ØD1 (mm)

Index	Selector	Material and Surfaces	W-Code
1	1	Stahl St37, grundiert	W7
2	2	Stahl St37, verzinkt (tZno)	W40

Saddle Material
