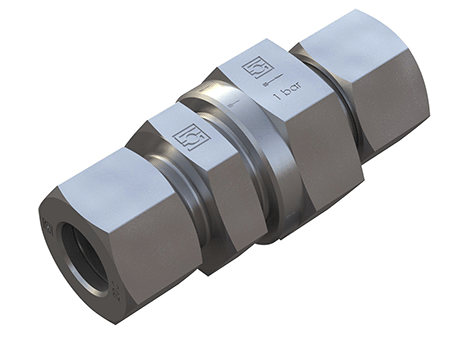

Check Valve Type FI-RV-... Series L / S

Manufacturer	Walter Stauffenberg GmbH & Co. KG
Description	Check Valve Type FI-RV-... Series L / S
Part number	FI-RV-06L-W3-MS-1
Mass	13 kg
Omniclass number	23.27.33.13

CAD models

Product selection

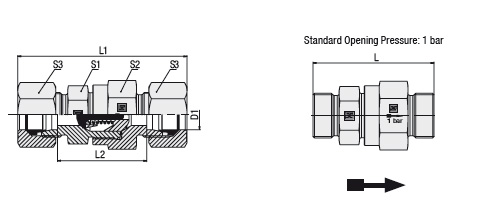

Index	Selector	Series	Tube OD D1 (mm)	PN (bar)	L (mm)	L1 (mm)	L2 (mm)	S1 (mm)	S2 (mm)	S3 (mm)	Weight ca. per 100 (kg)	Ordering Codes - Fitting body supplied with cutting rings & union nuts
1	1	L	6	400	52	67	38	22	27	14	13	FI-RV-06L-W3-MS-1
2	2	L	8	400	52	67	38	22	27	17	15	FI-RV-08L-W3-MS-1
3	3	L	10	400	52	67	38	22	27	19	15	FI-RV-10L-W3-MS-1
4	4	L	12	400	53	68	39	22	27	22	19	FI-RV-12L-W3-MS-1
5	5	L	15	400	58	74	44	27	32	27	27	FI-RV-15L-W3-MS-1
6	6	L	18	400	63	80	48	27	32	32	36	FI-RV-18L-W3-MS-1
7	7	L	22	250	75	92	60	41	46	36	62	FI-RV-22L-W3-MS-1
8	8	L	28	250	81	99	66	41	46	41	77	FI-RV-28L-W3-MS-1
9	9	L	35	250	92	114	71	60	70	50	168	FI-RV-35L-W3-MS-1
10	10	L	42	250	87	111	65	60	70	60	224	FI-RV-42L-W3-MS-1
11	11	S	6	400	56	71	42	22	27	17	14	FI-RV-06S-W3-MS-1
12	12	S	8	400	52	67	38	22	27	19	15	FI-RV-08S-W3-MS-1
13	13	S	10	400	54	71	39	22	27	22	17	FI-RV-10S-W3-MS-1
14	14	S	12	400	55	72	40	22	27	24	21	FI-RV-12S-W3-MS-1
15	15	S	14	400	62	81	46	27	32	27	30	FI-RV-14S-W3-MS-1
16	16	S	16	400	65	84	48	27	32	30	35	FI-RV-16S-W3-MS-1
17	17	S	20	400	78	100	57	41	46	36	68	FI-RV-20S-W3-MS-1
18	18	S	25	250	81	105	57	41	46	46	95	FI-RV-25S-W3-MS-1
19	19	S	30	250	91	117	64	50	55	50	129	FI-RV-30S-W3-MS-1
20	20	S	38	250	99	129	67	60	70	60	235	FI-RV-38S-W3-MS-1
