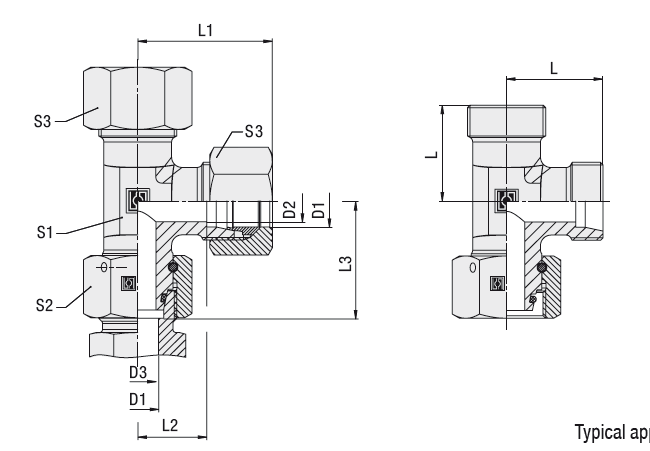

Adjustable Barrel Tees with 24° Taper / O-Ring (DKO) Type FI-ELD Series L / S

Manufacturer	Walter Stauffenberg GmbH & Co. KG
Description	Adjustable Barrel Tees with 24° Taper / O-Ring (DKO) Type FI-ELD Series L / S
Part number	FI-ELD-06L-B-W3-DKO-MS
Mass	6.5 kg

CAD models

Product selection

Index	Selector	Series	Tube OD D1 (mm)	PN (bar)	D2 (mm)	L (mm)	L1 (mm)	L2 (mm)	L3 (mm)	S1 (mm)	S2 (mm)	S3 (mm)	Weight ca. per 100 (kg)	Ordering Codes - Fitting body supplied with cutting ring & union nut
1	1	L	6	500	4	19	27	12	26	12	14	14	6.5	FI-ELD-06L-B-W3-DKO-MS
2	2	L	8	500	6	21	29	14	27.5	12	17	17	8.8	FI-ELD-08L-B-W3-DKO-MS
3	3	L	10	500	8	22	30	15	29	14	19	19	11.2	FI-ELD-10L-B-W3-DKO-MS
4	4	L	12	400	10	24	32	17	29.5	17	22	22	15.2	FI-ELD-12L-B-W3-DKO-MS
5	5	L	15	400	12	28	36	21	32.5	19	27	27	24.8	FI-ELD-15L-B-W3-DKO-MS
6	6	L	18	400	15	31	40	23.5	35.5	24	32	32	35.9	FI-ELD-18L-B-W3-DKO-MS
7	7	L	22	400	19	35	44	27.5	38.5	27	36	36	48.3	FI-ELD-22L-B-W3-DKO-MS
8	8	L	28	250	24	38	47	30.5	41.5	36	41	41	81.5	FI-ELD-28L-B-W3-DKO-MS
9	9	L	35	250	30	45	56	34.5	51	41	50	50	111.3	FI-ELD-35L-B-W3-DKO-MS
10	10	L	42	250	36	51	63	40	56	50	60	60	149.4	FI-ELD-42L-B-W3-DKO-MS
11	11	S	6	800	4	23	31	16	27	12	17	17	10.4	FI-ELD-06S-B-W3-DKO-MS
12	12	S	8	800	5	24	32	17	27.5	14	19	19	13.1	FI-ELD-08S-B-W3-DKO-MS
13	13	S	10	800	7	25	34	17.5	30	17	22	22	18	FI-ELD-10S-B-W3-DKO-MS
14	14	S	12	630	8	29	38	21.5	31	17	24	24	22.2	FI-ELD-12S-B-W3-DKO-MS
15	15	S	14	630	10	30	40	22	35	19	27	27	30.1	FI-ELD-14S-B-W3-DKO-MS
16	16	S	16	630	12	33	43	24.5	36.5	24	30	30	39.3	FI-ELD-16S-B-W3-DKO-MS
17	17	S	20	400	16	37	48	26.5	44.5	27	36	36	60.5	FI-ELD-20S-B-W3-DKO-MS
18	18	S	25	400	20	42	54	30	50	36	46	46	108.9	FI-ELD-25S-B-W3-DKO-MS
19	19	S	30	400	25	49	62	35.5	55	41	50	50	138.7	FI-ELD-30S-B-W3-DKO-MS
20	20	S	38	400	32	57	72	41	63	50	60	60	203.3	FI-ELD-38S-B-W3-DKO-MS
