24° Straight Reducer Type FI-G Series LL / L / S

Manufacturer	Walter Stauffenberg GmbH & Co. KG
Description	24° Straight Reducer Type FI-G Series LL / L / S
Part number	FI-G-06/04LL-W3-MS
Mass	1.5 kg

CAD models

Request for quotation

Product selection

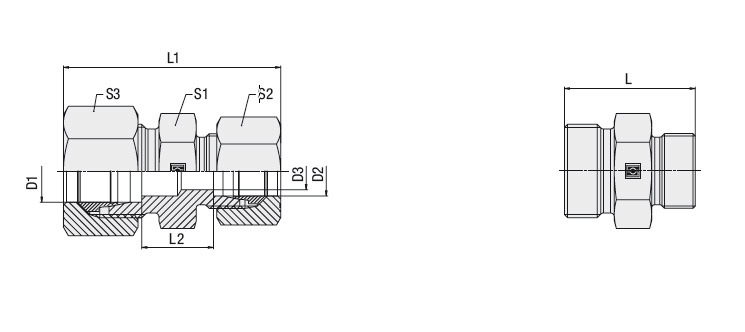

Index	Selector	Series	Tube OD D1 (mm)	D2 (mm)	PN (bar)	D3 (mm)	L (mm)	L1 (mm)	L2 (mm)	S1 (mm)	S2 (mm)	S3 (mm)	Weight ca. per 100 (kg)	Ordering Codes - Fitting body supplied with cutting ring & union nut
1	1	LL	6	4	100	3	20	32	10.5	11	10	12	1.5	FI-G-06/04LL-W3-MS
2	2	LL	8	4	100	4.5	22	34	12.5	12	10	14	2.1	FI-G-08/04LL-W3-MS
3	3	LL	8	6	100	6	22	34	11	12	12	14	2.8	FI-G-08/06LL-W3-MS
4	4	L	8	6	500	4	25	40	11	14	14	17	5.5	FI-G-08/06L-W3-MS
5	5	L	10	6	500	4	26	41	12	17	14	19	5.9	FI-G-10/06L-W3-MS
6	6	L	10	8	500	6	26	41	12	17	17	19	6.3	FI-G-10/08L-W3-MS
7	7	L	12	6	400	4	27	42	13	19	14	22	6.8	FI-G-12/06L-W3-MS
8	8	L	12	8	400	6	27	42	13	19	17	22	7.5	FI-G-12/08L-W3-MS
9	9	L	12	10	400	8	28	43	14	19	19	22	8.2	FI-G-12/10L-W3-MS
10	10	L	15	10	400	8	29	45	15	24	19	27	11.5	FI-G-15/10L-W3-MS
11	11	L	15	12	400	10	29	45	15	24	22	27	12.5	FI-G-15/12L-W3-MS
12	12	L	18	10	400	8	30	46	15.5	27	19	32	15.4	FI-G-18/10L-W3-MS
13	13	L	18	12	400	10	30	46	15.5	27	22	32	15.8	FI-G-18/12L-W3-MS
14	14	L	18	15	400	12	31	48	16.5	27	27	32	18.7	FI-G-18/15L-W3-MS
15	15	L	22	12	250	10	32	48	17.5	32	22	36	20.6	FI-G-22/12L-W3-MS
16	16	L	22	15	250	12	33	50	18.5	32	27	36	22.8	FI-G-22/15L-W3-MS
17	17	L	22	18	250	15	33	50	18	32	32	36	25.5	FI-G-22/18L-W3-MS
18	18	L	28	18	250	15	34	52	19	41	32	41	36.5	FI-G-28/18L-W3-MS
19	19	L	28	22	250	19	36	54	21	41	36	41	39.3	FI-G-28/22L-W3-MS
20	20	L	35	22	250	19	39	59	21	46	36	50	51.6	FI-G-35/22L-W3-MS
21	21	L	35	28	250	24	39	59	21	46	41	50	58.9	FI-G-35/28L-W3-MS
22	22	L	42	35	250	30	42.5	66	21	55	50	60	79.1	FI-G-42/35L-W3-MS
23	23	S	8	6	800	4	32	47	18	17	17	19	8.1	FI-G-08/06S-W3-MS
24	24	S	10	6	800	4	32	48	17.5	19	17	22	9.9	FI-G-10/06S-W3-MS
25	25	S	10	8	800	5	32	48	17.5	19	19	22	10.1	FI-G-10/08S-W3-MS
26	26	S	12	6	630	4	34	50	19.5	22	17	24	11.8	FI-G-12/06S-W3-MS
27	27	S	12	8	630	5	34	50	19.5	22	19	24	12.4	FI-G-12/08S-W3-MS
28	28	S	12	10	630	7	34	51	19	22	22	24	13.5	FI-G-12/10S-W3-MS
29	29	S	14	10	630	7	36	54	20.5	24	22	27	17	FI-G-14/10S-W3-MS
30	30	S	14	12	630	8	36	54	20.5	24	24	27	17.6	FI-G-14/12S-W3-MS
31	31	S	16	10	630	7	36	54	20	27	22	30	19.2	FI-G-16/10S-W3-MS
32	32	S	16	12	630	8	36	54	20	27	24	30	20.1	FI-G-16/12S-W3-MS
33	33	S	16	14	630	10	38	57	21.5	27	27	30	22.7	FI-G-16/14S-W3-MS
34	34	S	20	10	400	7	40	60	22	32	22	36	28.7	FI-G-20/10S-W3-MS
35	35	S	20	12	400	8	40	60	22	32	24	36	29.4	FI-G-20/12S-W3-MS
36	36	S	20	16	400	12	42	63	23	32	30	36	33.1	FI-G-20/16S-W3-MS
37	37	S	25	16	400	12	46	68	25.5	41	30	46	53	FI-G-25/16S-W3-MS
38	38	S	25	20	400	16	48	71	25.5	41	36	46	58.2	FI-G-25/20S-W3-MS
39	39	S	30	20	400	16	50	74	26	46	36	50	67.6	FI-G-30/20S-W3-MS
40	40	S	30	25	400	20	52	77	26.5	46	46	50	79.3	FI-G-30/25S-W3-MS
41	41	S	38	30	400	25	59	87	29.5	55	50	60	113.2	FI-G-38/30S-W3-MS
