24° Straight Male Stud Standpipe Fitting Type FI-EGE-...-R Series L / S

Manufacturer	Walter Stauffenberg GmbH & Co. KG
Description	24° Straight Male Stud Standpipe Fitting Type FI-EGE-...-R Series L / S
Part number	FI-EGE-06LR-W3-SV
Mass	2.5 kg

CAD models

Product selection

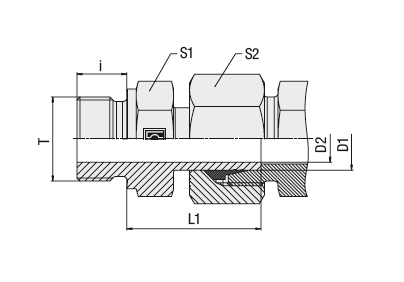

Index	Selector	Series	Tube OD D1 (mm)	PN (bar)	Thread T (mm)	D2 (mm)	L1 (mm)	i (mm)	S1 (mm)	S2 (mm)	Torque for thread T (N.m)	Weight ca. per 100 (kg)	Ordering Codes - Fitting body assembled with cutting ring & nut on the standpipe
1	1	L	6	315	G 1/8	3.5	24.5	8	14	14	18	2.5	FI-EGE-06LR-W3-SV
2	2	L	8	315	G 1/4	4.5	29.5	12	19	17	35	5.7	FI-EGE-08LR-W3-SV
3	3	L	10	315	G 1/4	7	27.5	12	19	19	35	5.3	FI-EGE-10LR-W3-SV
4	4	L	12	315	G 1/4	7	28.5	12	19	22	35	6.5	FI-EGE-12LR1/4-W3-SV
5	5	L	12	315	G 3/8	7.5	34	12	22	22	70	8.5	FI-EGE-12LR-W3-SV
6	6	L	12	315	G 1/2	7.5	34.5	14	27	22	110	13.1	FI-EGE-12LR1/2-W3-SV
7	7	L	15	315	G 1/2	11	32	14	27	27	110	13.5	FI-EGE-15LR-W3-SV
8	8	L	18	315	G 1/2	14	31.5	14	27	32	110	14.1	FI-EGE-18LR-W3-SV
9	9	L	22	160	G 3/4	18	32.5	16	32	36	180	20.4	FI-EGE-22LR-W3-SV
10	10	L	28	160	G 1	23	35	18	41	41	330	34.8	FI-EGE-28LR-W3-SV
11	11	L	35	160	G 1 1/4	29.5	42.5	20	50	50	540	56.9	FI-EGE-35LR-W3-SV
12	12	L	42	160	G 1 1/2	35.5	46.5	22	55	60	630	71.4	FI-EGE-42LR-W3-SV
13	13	S	6	630	G 1/4	3.5	27	12	19	17	55	5.2	FI-EGE-06SR-W3-SV
14	14	S	8	630	G 1/4	4.5	29.5	12	19	19	55	6.1	FI-EGE-08SR-W3-SV
15	15	S	10	630	G 3/8	6.5	32	12	22	22	90	9	FI-EGE-10SR-W3-SV
16	16	S	12	630	G 3/8	7.5	34	12	22	24	90	10.2	FI-EGE-12SR-W3-SV
17	17	S	12	630	G 1/2	7.5	34.5	14	27	24	130	12.7	FI-EGE-12SR1/2-W3-SV
18	18	S	14	630	G 1/2	9.5	36.5	14	27	27	130	14.3	FI-EGE-14SR-W3-SV
19	19	S	16	400	G 1/2	11.5	37	14	27	30	130	16.2	FI-EGE-16SR-W3-SV
20	20	S	16	400	G 3/4	11.5	39	16	32	30	270	23	FI-EGE-16SR3/4-W3-SV
21	21	S	20	400	G 3/4	15.5	43	16	32	36	270	27.6	FI-EGE-20SR-W3-SV
22	22	S	25	400	G 1	18	48	18	41	46	340	50.2	FI-EGE-25SR-W3-SV
23	23	S	30	400	G 1 1/4	23.5	51	20	50	50	540	67.2	FI-EGE-30SR-W3-SV
24	24	S	38	315	G 1 1/2	29	60	22	55	60	700	102	FI-EGE-38SR-W3-SV
